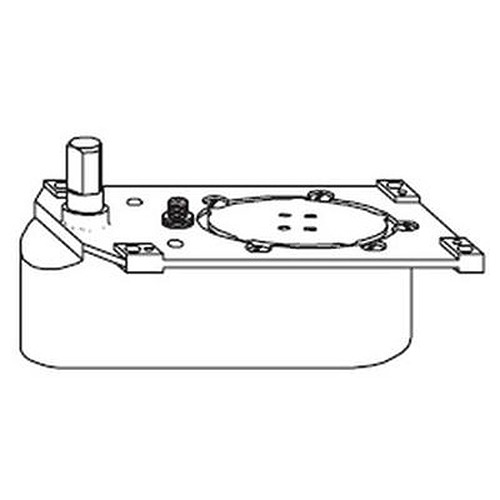

Rixson PH20

Special Order Offset Replacement Floor Closer

Quick Product Details

  • Replacement Floor Closer Body
  • For commercial interior doors
  • Offset Hung
  • Heavy Duty
  • Single Acting
  • Physically Handicapped 5# of opening force for ADA compliance for interior doors
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: PH20

Choose Options Below

This Rixson PH20 is a heavy duty offset floor closer body used for replacement applications on interior doors that weigh up to 200 lbs. PH. Physically Handicapped 5# of opening force for ADA compliance for interior doors.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order non stock item with 4 week lead time.


Suited for:
  • Commercial interior doors

Quality and Safety:
  • Meets ANSI/BHMA A156.4 standards
  • 2 year limited warranty

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

Style Replacement Floor Closer Body
Application Offset
Door Handing Handed
Function Single Acting
Door Weight Up to 200 lb
Door Width Up to 3'0

More Info


This Rixson 20 floor closer body allows the door to swing 180 degrees only in one direction. It is handed and can hold doors that measure up to three feet wide and that weigh up to  two hundred pounds. Built-into this closer, is a hydraulic backcheck which cushions the doors opening from 140 to 180 degrees. With the use of this closer, vertical door adjustment is permitted and the closing speed of the door can also be adjusted. A cast iron cement case is generally used with this closer body. This product is not available with the hold-open or delayed action options.
