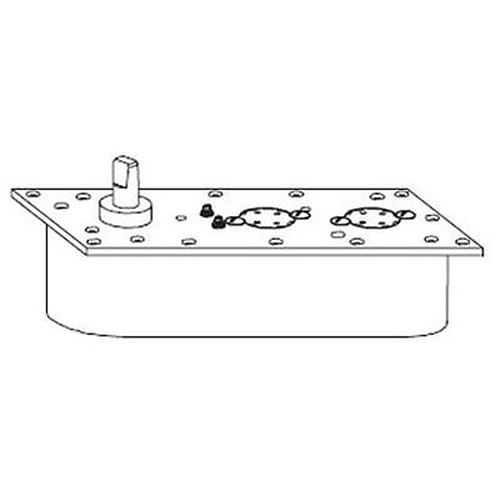

Rixson PH30A

Special Order Double Acting Center Hung Floor Closer Body with PH Option and Hold Open

SKU: PH30A

Price: $827.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

The Rixson 30A100 double acting center hung floor closer body with PH option and hold open. PH prefix indicates 5 pounds of opening force.When a floor closer that permits an interior door to swing in both directions is needed the Rixson 30 series double acting floor close fills the bill. For interior doors up to 200 LBS. and up to 4' 0" x 8' 6". With adjustable closing speed valves for each direction of door swing

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $827.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Hold Open:

AHO (Automatic Hold-Open) 90 degrees
AHO (Automatic Hold-Open) 100 degrees

Help Me Decide



No hold-open

Door does not remain open

Automatic  hold-open at 90⁰

Door remains open at 90⁰ until manually closed (requires 93⁰ swing)

Automatic  hold-open at 100⁰

Door remains open at 100⁰ until manually closed (requires 103⁰ swing)

Overview

Special order non stock item with 4 week lead time
  • PH option,to comply with ICC/ANSI A117.1 established by the Americans with Disabilities Act. PH prefix indicates 5 pounds of opening
    force, based at 30" from centerline of pivot. PH closers may not be used on labeled fire doors or exterior doors.
  • Double Acting
  • Automatic hold open at 100 degrees, requires (103° swing)
  • Non-handed
  • For interior doors
  • For door weights up to 200 lbs.
  • Door sizes up to 4' 0" x 8' 6"

Available Options: Choose Options Above

  • Hold Open: info icon

    • AHO (Automatic Hold-Open) 90 degrees
    • AHO (Automatic Hold-Open) 100 degrees
  • Adjustable closing speed valves for each direction of door swing
  • Mechanism returns door to center
  • Maximum door opening 103 degrees
  • Overhead stop recommended for exterior or high traffic doors
  • Uses steel cement case
  • Not allowed for fire rated doors
  • For single acting applications - #60131 applied stop required
