Rixson PH8.5#L27S-105-LAP

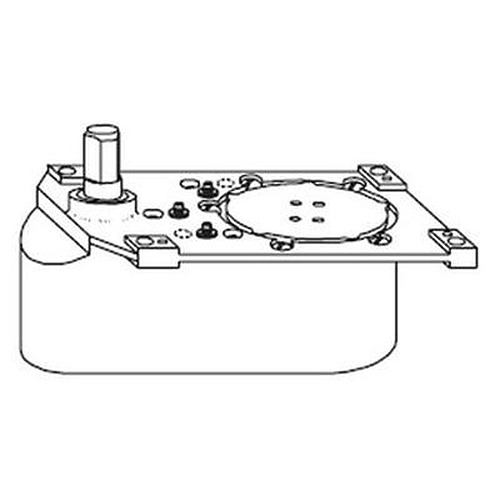

Special Order Offset Floor Closer Body for Lead Lined Doors

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: PH8.5#L27S-105-LAP

Choose Options Below

The RixsonPHL27 is the smart choice for controlling extremely heavy doors. L27's are ideal for use with bronze or stone clad doors, as well as lead-lined doors found in hospital or other medical environments.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order item with 6 week lead time

  • Single Acting
  • With PH option-Physically Handicapped for ADA compliance on exterior door. 8.5lb of force required to open door.
  • Selective on hold open at 105 degrees-Hold-open may be turned on/off
  • For 2" thick lead lined doors
  • Handed
  • Exterior or Interior Doors
  • For Lead-Lined/Heavy/High Traffic Doors
  • Weight up to 1500 lbs.
  • For door width up to 4'0"

Door size & weight guidelines are determined using the appropriate number of intermediate pivots.

Available Options: Choose Options Above

  • Opening Degrees: info icon

    • 90 Degrees
    • 105 Degrees
  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • Heavy-duty bottom arm and optional top pivot with screw holes designed to straddle lead lining
  • Thrust bearing for greater load capacity
  • Built-in positive dead stop at 105° prevents door from swinging beyond the opening degree
  • Separate and independent valves for closing speed, latch speed and backcheck
  • Uses cast iron cement case
  • Body includes 41204 thrust bearing package
  • Vertical door adjustment
  • Intermediate pivot required
  • Doors up to 90" in height should use one intermediate pivot. Each additional 30" warrants another intermediate pivot



Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Scroll for More Product Information
