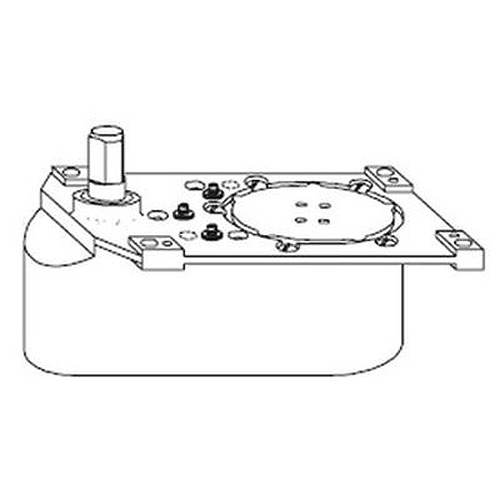

Rixson Q27N-LAP

Special Order Offset Floor Closer Body with Q Option

Quick Product Details

  • For commercial exterior and interior doors
  • Offset Hung
  • Heavy Duty
  • Single Acting
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: Q27N-LAP

Choose Options Below

This Rixson Q27 heavy duty offset floor closer is designed for exterior and interior doors weighing up to 350 lbs. Its surface mounted bottom arm allows for closer removal without demounting the door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Opening Degrees:

85 Degrees 85 Degrees
90 Degrees 90 Degrees
95 Degrees

Overview


Suited for:
  • Surface-attached bottom arm allows closer removal without demounting door.
  • Commercial exterior and interior heavy doors




Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Opening Degrees:

    • 85 Degrees
    • 90 Degrees
    • 95 Degrees

Product at A Glance

Style Floor Closer Body
Application Offset Hung
Offset 3/4" (standard)
Door Handing Handed
Function Single Acting
Door Weight Up to 350 lb
Door Width Up to 4'0
Door Thickness 1-3/4"

More Info


For easy removal of the floor closer, the Rixson Q27 model is used with a bottom arm that is mounted on the surface of the door so the closer can be removed without having to demount the whole door. This closer has a 3/4” offset. It can be used with doors weighing a maximum of three-hundred and fifty pounds, measuring up to four feet in width and a thickness of 1-3/4”. This closer only permits the door to swing in one direction, which is necessary in some facilities for practical reasons. A ninety degree built-in positive deadstop, keeps the door from going beyond the desired opening degree
