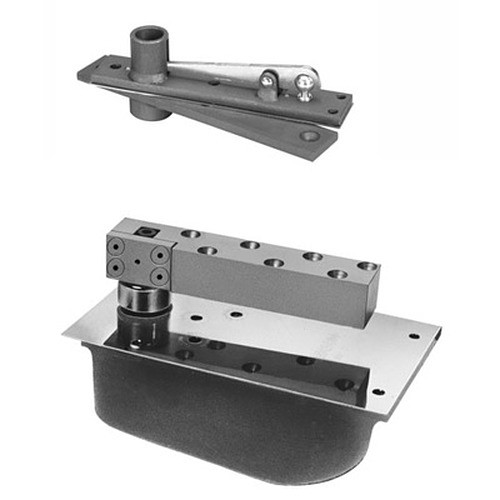

Rixson SCH28-90S-587-CWF-EH345-4

Special Order Heavy Duty Center Hung Closer with Sealed Case and Cold Weather Fluid

Quick Product Details

  • Floor Closer
  • EH345 Electrified Heavy Duty Top Pivot with 22 Gauge 4 Wire
  • Sealed Case
  • CWF Cold Weather Fluid
Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: SCH28-90S-587-CWF-EH345-4

Choose Options Below

This Rixson SCH28S-587- heavy duty center-hung floor closer includes a side load arm which is used on doors that require access to the spindle from face of door. This closer is great for exterior and interior extra heavy doors up to 1-3/4 inches thick that have heav door traffic.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door


Choose Hold Open:

SHO (Selective Hold-Open)

Help Me Decide


Selective hold-open

Door hold-open can be controlled via a screw on top of the closer to be automatic or non hold-open

Choose Opening Degrees:

90 Degrees 90 Degrees
105 Degrees 105 Degrees

Help Me Decide


Special order no stock item with 6 week lead time
Suited for:
  • Extra heavy doors in commercial exteriors and interiors

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)
  • Hold Open: info icon

    • SHO (Selective Hold-Open)
  • Opening Degrees: info icon

    • 90 Degrees
    • 105 Degrees

Product at A Glance

  • Selective Hold Open-closer can be set to hold open or non-hold open. This is done via a screw control on the top of the closer.
  • 587-Special side load arm for 1-3/4” doors.
  • Built-in positive dead stop.
  • The  closing-speed, latch-speed and backcheck of the door can conveniently be adjusted with separate and independent valves.
  • Not for doors that are fire rated.
  • #60131 frame or applied stop required.
  • Great to use with thick, bronze or stone clad doors.
  • Includes an additional thrust bearing to carry heavier load capacity.
Door Thickness Up to 1-3/4"
Style Floor closer
Application Center-hung
Door Handing Handed
Function Single Acting
Door Weight Up to 1000 lbs
Door Size Up to 4'0 x 8'6"

More Info

This Rixson  H28-587 is exactly the same as the Rixson H28, however the  H28-587 includes a side-load arm. The side load arm allows for free access to the spindle from the face of the door. This closer is ideal for very heavy doors (such as bronze or stone clad)  in commercial exteriors and interiors that are up to 1-3/4” thick, and have high traffic.
