Rixson SCH28105S

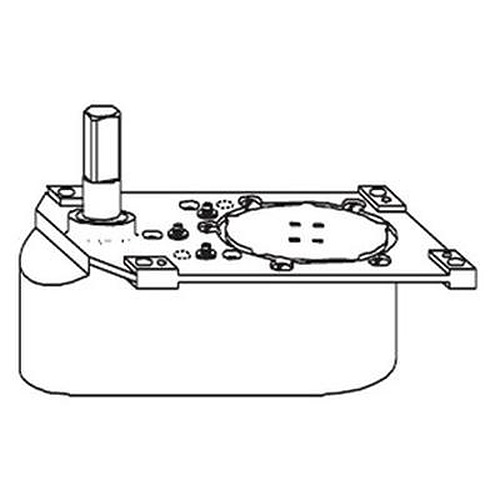

Special Order Heavy Duty Center Hung Floor Closer Body with Sealed Case

Price: $948.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: SCH28105S

Choose Options Below

The Rixson SCH28 Series is the smart choice for controlling extremely heavy center-hung doors. H28's are ideal for use with thick, bronze or stone clad doors, and work well on interior or exterior applications. With Sealed case The SC option includes the H28 body and cement case.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $948.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Special order non stick item with 4 week lead time
  • Single Acting.
  • Sealed case SC, for exterior doors or interior doors with heavy exposure to water or cleaning solvents, protects the body. The closer body
    is placed in the cement case. A stainless steel cover plate is then gasketed and fastened to the cement case.
  • Handed.
  • For exterior or interior doors.
  • Selective hold open (SHO) at same degree as dead stop, 105 degrees.
  • For Extra Heavy Doors.
  • For door weight to 1000 lbs.
  • For door sizes up to 4' 0" x 8' 6".

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • For thick, heavy doors.
  • Thrust bearing for greater load capacity.
  • Built-in positive dead stop at 105° prevents door from swinging beyond the opening degree.
  • Separate and independent valves for closing speed, latch speed and backcheck.
  • Uses cast iron cement case.
  • Body includes 41204 thrust bearing package.
  • Not allowed for fire rated doors.
  • Frame or applied stop required, such as #60131.
