Rixson SCPH-27-90N-LTP-613

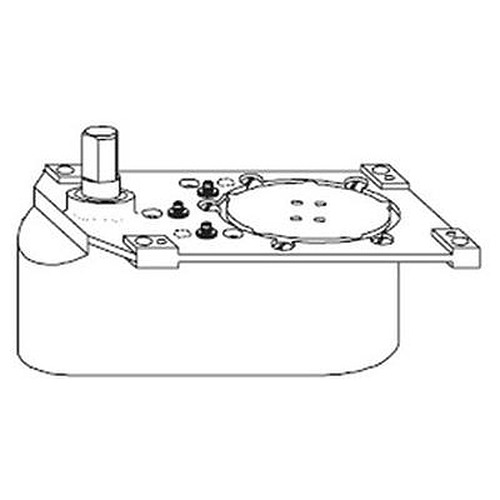

Special Order 27 Complete 3/4" Offset Floor Closer with PH Option and Sealed Case and Less Top Pivot

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: SCPH-27-90N-LTP-613

Choose Options Below

The Rixson 27 offset heavy duty offset floor closer series with built-in positive dead stop and separate and independent valves for closing speed, latch speed an backcheck meets most offset-hung requirements for a heavy duty concealed door closer. Non hold open.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Choose Finish:

613-Dark Bronze 613-Dark Bronze

Overview

Special order item with 4 week lead time.
  • Complete closer includes closer body, 252050 bottom arm, 274750 floor plate,253000 cement case, M19 intermediate pivot, less top pivot.
  • PH option-Physically Handicapped 5# of opening force for ADA compliance for interior doors.
  • SC option-sealing a closer protects it from moisture. Cement case and closer body are gasketed and
    fastened together.
  • Dark bronze finish.
  • Non hold open.
  • Single Acting.
  • For exterior or interior doors.
  • For door weight to 450 lbs..
  • For door Width up to 4'0"".
Door size & weight guidelines are determined using the appropriate number of intermediate pivots.
