Roton 780-053-83-black

Special Order Standard Duty Half Surface Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Half Surface
  • Standard Duty
  • 83" for 7 Foot Tall Doors
Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 780-053-83-black

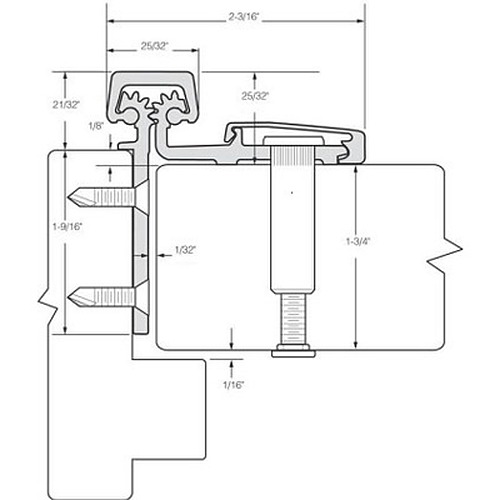

This Roton 780-053 is a standard duty continuous hinge. The frame leaf of the hinge gets concealed between the rabbet of the frame and the edge of the door, and the door leaf gets mounted to the face of the door.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Call for Pricing 1-866-749-7661

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock itemwith 4 week lead time
Quality and Safety:
  • 83" for 7 foot tall doors.
  • Meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Product at A Glance

  • The frame leaf is concealed between the rabbet of the frame and the edge of the door
  • The door leaf is mounted to the face of the door with thru-bolts or screws
  • Can be used with any door material
  • Includes fasteners, Dril-Kwik screws and thru-bolts
  • Does not require door reinforcements
  • Frame Reinforcement are required when weight exceeds 200-lbs, use 16 gauge channel
  • Frame leaf alignment rib for proper hinge location
  • Includes a security molding
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Standard Duty
Mounting Half-Surface
Door Thickness 1-3/4" - 1-3/8"
Door Weight Maximum 200 lbs.
Clearance 5/32" minimum recommended hinge side plus standard lockside clearance
Inset 1/8"

More Info


This Roton standard duty, half-surface continuous hinges is supplied as 83” for seven foot doors and 95” for eight foot doors. This hinge can be used on doors of any material. Its frame leaf is completely concealed between the rabbet of the door frame and the edge of the door. The other leaf gets mounted to the face of the door with thru-bolts or screws.
