Roton 780-053

Standard Duty Half Surface Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Half Surface
  • Standard Duty
  • 83" for 7 Foot Tall Doors
  • LIMITED AVAILABILITY,PLEASE CALL 866-749-7661 FOR MORE INFORMATION.
Price: $181.00 /each

SKU: 780-053

Choose Options Below

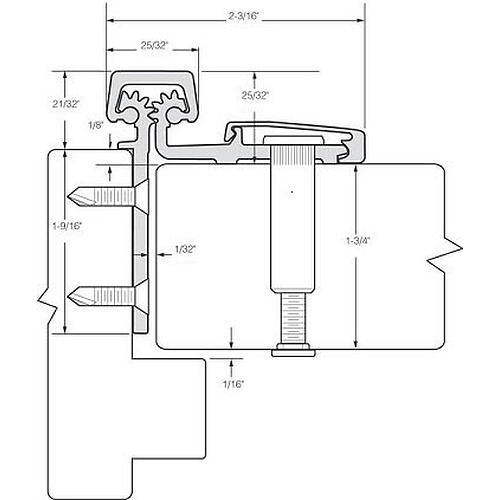

This Roton 780-053 is a standard duty continuous hinge. The frame leaf of the hinge gets concealed between the rabbet of the frame and the edge of the door, and the door leaf gets mounted to the face of the door.

  • Stock Item
  • Order in the next 33 hours 40 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $181.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

83 83" CLR-Clear Anodized Satin Aluminum
83 83" DKBZ-Dark Bronze Exterior Anodized +$68.00

Overview


Quality and Safety:
  • 83" for 7 foot tall doors.
  • Meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

Product at A Glance

  • The frame leaf is concealed between the rabbet of the frame and the edge of the door
  • The door leaf is mounted to the face of the door with thru-bolts or screws
  • Can be used with any door material
  • Includes fasteners, Dril-Kwik screws and thru-bolts
  • Does not require door reinforcements
  • Frame Reinforcement are required when weight exceeds 200-lbs, use 16 gauge channel
  • Frame leaf alignment rib for proper hinge location
  • Includes a security molding
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Standard Duty
Mounting Half-Surface
Door Thickness 1-3/4" - 1-3/8"
Door Weight Maximum 200 lbs.
Clearance 5/32" minimum recommended hinge side plus standard lockside clearance
Inset 1/8"

More Info


This Roton standard duty, half-surface continuous hinges is supplied as 83” for seven foot doors and 95” for eight foot doors. This hinge can be used on doors of any material. Its frame leaf is completely concealed between the rabbet of the door frame and the edge of the door. The other leaf gets mounted to the face of the door with thru-bolts or screws.
