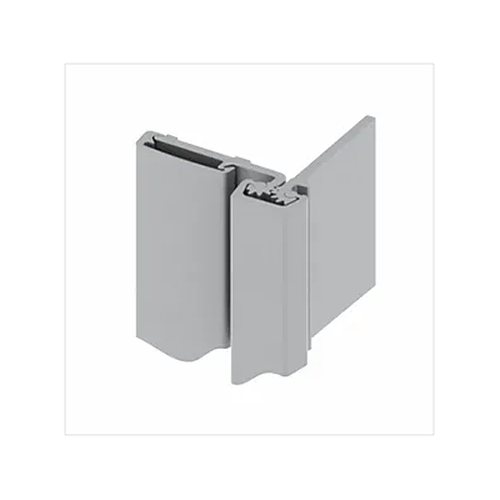

Roton 780-053HD

Heavy Duty Half Surface Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Half Surface
  • Heavy Duty
  • UL Fire Rated
Price: $172.00 /each

SKU: 780-053HD

Choose Options Below

This Roton 780-053HD is a half-surface continuous hinge for heavy duty, high frequency applications. This hinge is low temperature and corrosion resistant to extend the life of your door opening.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $172.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding?
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$42.00
95" Clear Anodized Aluminum +$39.00
95" Dark Bronze Anodized Aluminum +$84.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors


  • Meets requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

  • 780 Series Roton heavy duty hinges are approved per ANSI A156.26 Grade 1 for 300 lb. doors
  • The frame leaf is concealed between the rabbet of the frame and the edge of the door
  • The door leaf is mounted to the face of the door with thru-bolts or screws
  • It can be used with any door material
  • Includes fasteners - Dril-Kwik screws and thru-bolts
  • Does not require door reinforcements
  • Frame Reinforcement are required when weight exceeds 200 lbs.- use 16-gauge channel
  • Frame leaf alignment rib for proper hinge location
  • Includes a security molding
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Heavy Duty
Mounting Half-Surface
Door Thickness 1-3/4" / 1-3/8"
Clearance 5/32" minimum recommended hinge side plus standard lockside clearance
Inset 1/8"

More Info

Roton continuous hinges are surface applied and add life and quality to your doors and openings. This 780-053HD is designed for applications with high frequency. The package includes a security molding, fasteners, Dril-Kwik screws and thru-bolts. With the use of this hinge, no door reinforcements are required.
