Roton 780-112HD-83-CLR-HT

Special Order Heavy Duty Concealed Leaf Continuous Hinge with Hospital Tip

Quick Product Details

  • Continuous Hinge
  • Concealed Leaf
  • Heavy Duty
  • Hospital Tip
SKU: 780-112HD-83-CLR-HT

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

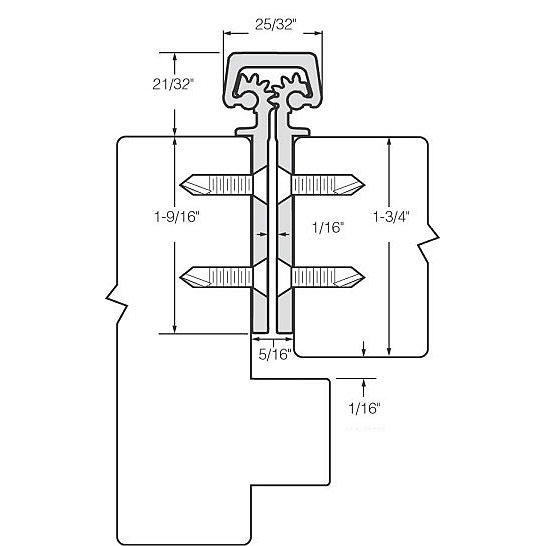

This Roton 780-112HD-HT is a continuous hinge that will extend the life of your door opening. Using this model, the leaves will be concealed between the rabbet of the frame and the hinge of the door. Used for heavy duty applications. With hospital tip

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Special order non stock item with 4 week lead time.
  • Hospital tip-HT-prepared with a cover channel tapered at 45° angle at the top of the hinge. These are ideal for use in hospitals and correctional facilities to help provide a clean and safe environment.
  • 83 clear.
  • Heavy Duty for high frequency doors or heavy medium frequency doors.
  • Meets requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

This Roton continuous hinge will not only greatly improve the quality of your door and opening, but it will also enhance the aesthetics of the applications since the leaves of the hinge are completely concealed. It is surface applied and installed flush with the top edge of the door. Door reinforcements are not required for doors up to 200 pounds.
