Roton 780-157HD

Heavy Duty Full Surface Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Full Surface
  • Heavy Duty
  • UL Fire Rated
Price: $160.00 /each

SKU: 780-157HD

Choose Options Below

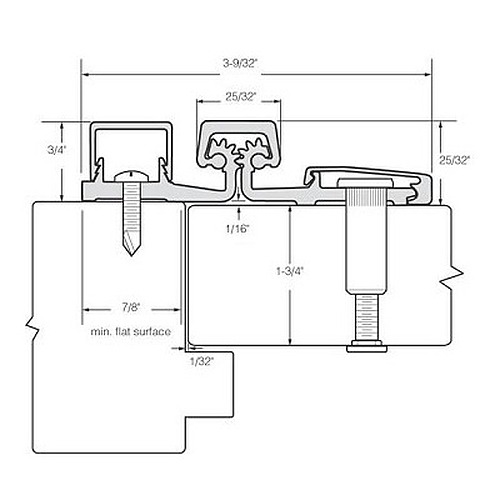

This Roton 780-157HD is a continuous hinge in which the frame leaf gets mounted to the face of the frame and the door leaf gets mounted to the face of the door with thru-bolts. It is suitable for surface applications where the frame face dimensions are limited.

  • In Stock!
  • Order in the next 8 hours 29 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $160.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding?
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$35.00
95" Clear Anodized Aluminum +$32.00
95" Dark Bronze Anodized Aluminum +$74.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality and Safety:
  • Meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

  • For surface applications where frame face dimension is limited
  • The frame leaf is mounted to the face of the frame and the door leaf is mounted to the face of the door with thru bolts.
  • Can be used on doors of any material
  • Includes a security molding
  • Frame Reinforcement are required when weight exceeds 200 lbs.- use 16-gauge channel
  • Includes Dril-Kwik (R) screws and thru-bolts
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Frame and door leaf alignment ribs for proper hinge and door location
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Does not require door reinforcements
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Heavy Duty
Mounting Full Surface
Clearance 1/32" hinge side - plus standard lockside clearance
Inset 1/8"
Fire Rated 3 Hour Fire Rated with Metal Door and Fire Rated Hollow Metal Frame

More Info


In applications where the frame has limited space for mounting the hinge, this Roton 780-157HD continuous hinge can be used. This hinge is full surface applied and it will greatly enhance the quality of your door, thereby adding life and durability to your opening. A clearance of 1/32” is recommended on the hinge side as well as a standard lockside clearance.
