Roton 780-210

Standard Duty Full Surface Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Full Surface
  • Standard Duty
  • LIMITED AVAILABILITY,PLEASE CALL 866-749-7661 FOR MORE INFORMATION.
Price: $170.00 /each

SKU: 780-210

Choose Options Below

This Roton 780-210 is an excellent, continuous, full surface hinge for medium frequency applications to lengthen the lifetime of your door opening. It is available in different lengths and finishes to suit the needs and decor of your opening.

  • Stock Item
  • Order in the next 18 hours 57 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $170.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding? QH chevron down
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$60.00
95" Clear Anodized Aluminum +$33.00
95" Dark Bronze Anodized Aluminum +$110.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality and Safety:
  • Meets requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

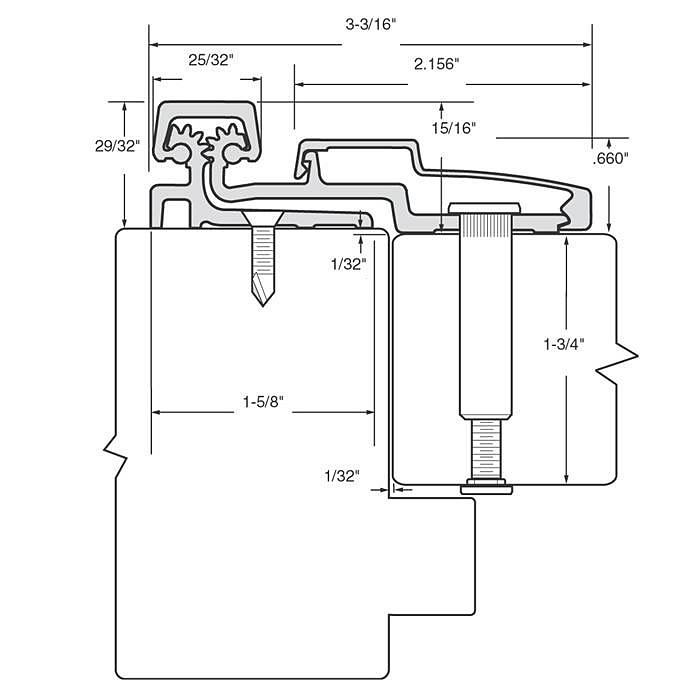

  • For surface applications where frame face dimension is limited
  • The frame leaf is mounted to the face of the frame and the door leaf is mounted to the face of the door with thru bolts.
  • 1-5/8” minimum frame face required plus 3/16” rotational clearance
  • Can be used on doors of any material
  • Includes a security molding
  • Frame Reinforcement are required when weight exceeds 200 lbs. - use 16-gauge channel
  • Includes Dril-Kwik (R) screws and thru-bolts
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Frame and door leaf alignment ribs for proper hinge and door location
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Does not require door reinforcements
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Standard Duty
Mounting Full Surface
Clearance 1/32" hinge side - plus standard lockside clearance
Inset 1/32"

More Info


Roton hinges are designed to enhance the quality of your opening. They will greatly add to the life of your door and decrease the need for maintenance and repairs. This 780-210 is full-surface mounted for standard duty applications. Its frame leaf will mount to the face of the frame, while the door leaf will mount to the face of the door using thru-bolts.
