Roton 780-210HD

Heavy Duty Full Surface Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Full Surface
  • Heavy Duty
Price: $158.00 /each

SKU: 780-210HD

Choose Options Below

This Roton 780-210HD is a heavy duty, full surface continuous hinge to extend the life of an opening and to reduce its replacement and maintenance costs. This hinge is designed for heavy duty, high traffic applications. It requires 1-5/8" minimum frame face and 3/16" rotational clearance.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $158.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding?
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$34.00
95" Clear Anodized Aluminum +$28.00
95" Dark Bronze Anodized Aluminum +$71.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality and Safety:
  • Meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

  • For surface applications where frame face dimension is limited
  • The frame leaf is mounted to the face of the frame and the door leaf is mounted to the face of the door with thru bolts
  • 1-5/8” minimum frame face required plus 3/16” rotational clearance
  • Can be used on doors of any material
  • Includes a security molding
  • Frame Reinforcement are required when weight exceeds 200 lbs. - use 16-gauge channel
  • Includes Dril-Kwik (R) screws and thru-bolts
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Frame and door leaf alignment ribs for proper hinge and door location
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Does not require door reinforcements
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Heavy Duty
Mounting Full Surface
Clearance 1/32" hinge side - plus standard lockside clearance
Inset 1/32"

More Info

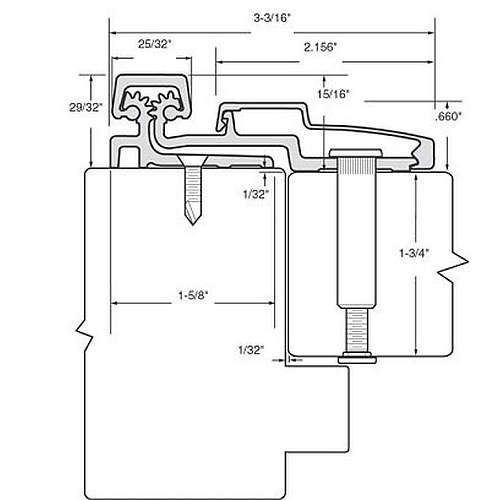

This Roton geared continuous hinge is highly recommended for surface applications where there is limited frame space. To mount this hinge on a door and frame the following clearances are necessary: 1/32” minimum on the hinge side of the door, a standard lockside clearance, and 1-5/8” minimum frame face and minimum of 3/16” rotational clearance.
