Roton 780-224

Standard Duty Concealed Leaf Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Concealed Leaf
  • Standard Duty
  • LIMITED AVAILABILITY,PLEASE CALL 866-749-7661 FOR MORE INFORMATION.
Price: $112.00 /each

SKU: 780-224

Choose Options Below

This Roton 780-224 is a standard duty continuous hinge in which the leaves are concealed between the rabbet of the frame and the hinge edge of the door. This hinge can be used on doors made of any material in medium frequency applications.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $112.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding? QH chevron down
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$34.00
95" Clear Anodized Aluminum +$30.00
95" Dark Bronze Anodized Aluminum +$72.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality and Safety:
  • Meets requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

  • Leaves are concealed between the rabbet of the frame and the hinge edge of the door
  • Includes a door edge protection lip
  • Can be used on doors of any material
  • Frame Reinforcement are required when weight exceeds 200 lbs. - use 16-gauge channel
  • Includes Dril-Kwik screws and thru-bolts
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Frame and door leaf alignment ribs for proper hinge and door location
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Does not require door reinforcements
  • Any product modifications may void all warranties
Style Continuous hinge
Grade Standard Duty
Mounting Concealed Leaf

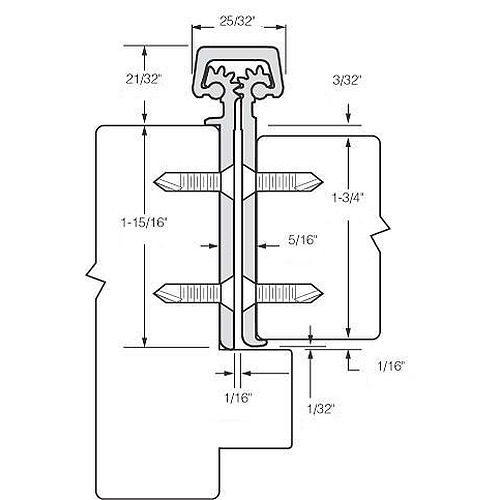

Door Thickness 1-3/4"
Clearance 5/16" hinge side - plus standard lockside clearance
Inset 3/32"

More Info


This Roton geared continuous hinge mounts in manner that conceals the leaves. It can be used on doors of any material and it is available in two different sizes to fit your door. The package includes a door edge protection lip, Dril-Kwik screws and thru-bolts to make for convenient installation. Frame and door reinforcements are not necessary on doors weighing up to 200 lbs. when using this hinge.
