Roton 780-224HD

Heavy Duty Concealed Leaf Continuous Hinge

Quick Product Details

  • Continuous Hinge
  • Concealed Leaf
  • Heavy Duty
Price: $106.00 /each

SKU: 780-224HD

Choose Options Below

This Roton 780-224HD is a concealed leaf continuous hinge that meets the requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1. It is also backed by a lifetime Roton warranty to ensure your utmost satisfaction with this fantastic hinge.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $106.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Size and Finish-RT:

Need Help Deciding?
83" Clear Anodized Aluminum
83" Dark Bronze Anodized Aluminum +$32.00
95" Clear Anodized Aluminum +$22.00
95" Dark Bronze Anodized Aluminum +$63.00

Help Me Decide

83" for 7 foot doors.

95" for 8 foot doors

Overview


Quality and Safety:
  • Meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
  • Lifetime warranty

Available Options: Choose Options Above

  • Size and Finish-RT: info icon

    • 83" Clear Anodized Aluminum
    • 83" Dark Bronze Anodized Aluminum
    • 95" Clear Anodized Aluminum
    • 95" Dark Bronze Anodized Aluminum

Product at A Glance

  • Leaves are concealed between the rabbet of the frame and the hinge edge of the door
  • Includes a door edge protection lip
  • Can be used on doors of any material
  • Frame Reinforcement are required when weight exceeds 200 lbs. - use 16-gauge channel
  • Includes Dril-Kwik screws and thru-bolts
  • All Roton continuous geared hinges are surface applied
  • Installed flush with the top edge of the door
  • Recommended 1/8” for head clearance
  • Frame and door leaf alignment ribs for proper hinge and door location
  • Should in-the-field modifications be required, cut only from the bottom of the hinge. Do not cut through bearings or screw holes
  • Does not require door reinforcements
  • Any product modifications may void all warranties

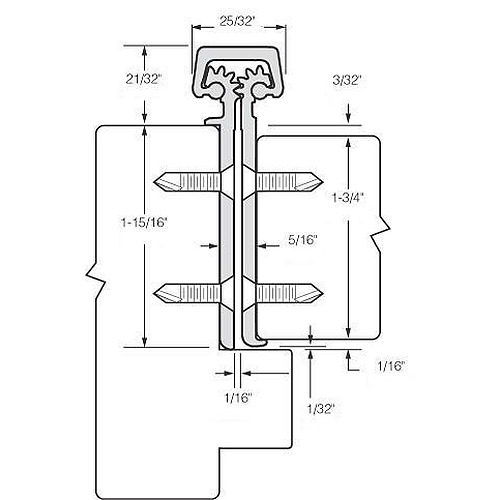

Style Continuous hinge
Mounting Concealed Leaf
Mounting Heavy Duty
Door Thickness 1-3/4"
Clearance 5/16" hinge side - plus standard lockside clearance
Inset 3/32"

More Info


Roton geared continuous hinges are not only engineered with perfection to enhance the quality of all your door openings, but they are also backed by a Roton lifetime warranty to ensure that this hinge serves you flawlessly in the best possible manner. This model 78-224HD is mounted with concealed leaves and used in heavy duty applications.
