Rutherford Controls 8371

Interior Single Door Magnetic Lock

Quick Product Details

  • 600 lbs holding force
  • Clear anodized (US28) finish standard
  • Operates on 12 or 24 VDC, selectable
Price: $372.00 /each

SKU: 8371

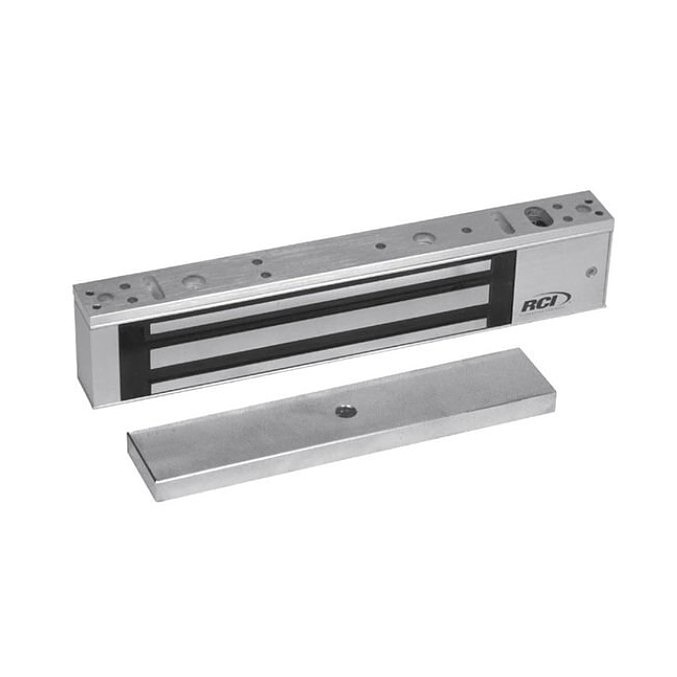

The Surface MiniMag(R) locks are designed with a 1-7/8" width to keep undersized openings within code. These locks are ideal solutions for traffic control on narrow-style interior or perimeter doors. The RCI 8371 Surface MiniMag(R) is for single outswinging doors. These electromagnetic locks install perfectly alongside most automatic door operators or stop-mounted door hardware. They reduce installation time and eliminate the need for extra brackets.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Stock Item
  • Order in the next 20 hours 42 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Overview

  • Ideal for high-use areas for traffic control in interior applications.
  • 750 lbs holding force single magnetic Lock.
  • Magnet size: 9-3/8" L x1-7/8" H x 1" W.
  • Armature size: 7-1/4" L x 1-1/2" H x 1/2" W.
  • Low current draw: 520 mA at 12 VDC/24VDC.
  • Operating Temperature:+14 to +131F [-10 to +55C.

Product at A Glance

  • Lifetime Limited Warranty
  • Fire Rated CAN/ULCS104 - UL10C 1-Hour
  • Stabilizing 4 bolt "drop stop" mounting
  • Keyhole mounting for ease of installation
  • Surge protection
  • Designed to overcome residual magnetism
  • Easy-access wiring cavity

More Info

  • UL 10C fire rated
  • UL 294
  • CAN4-S104 (ULC-S104) fire door conformant
  • CSFM (California State Fire Marshal) Listed CSFM: 3374-2275:0500
