Sargent 11-72-8205-LNL-V01-RHR-626

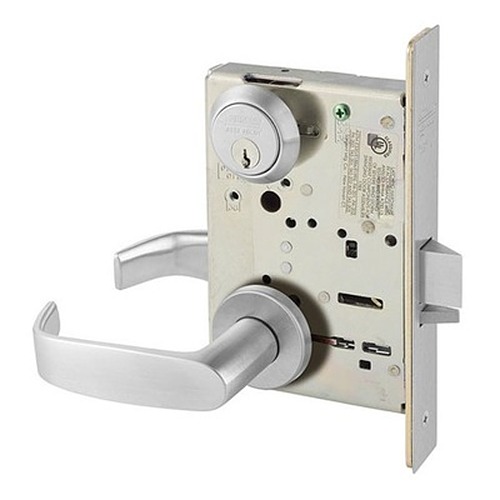

Special Order Office or Entry Function Mortise Lock with L Lever and LN Rose

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 11-72-8205-LNL-V01-RHR-626

Complete mortise locks contain everything needed for new or replacement installation. The Sargent 8205 complete Office or Entry function mortise lock. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools, Universities, Office Buildings and Government Facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • With L style lever and LN rose.
  • Satin Chrome Finish
  • LN rose has a 2-1/8" diameter.
  • Includes Best Construction Core, 7-Pin Size
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • Handing - field reversible-shipped RHR standard.
  • Includes interior locking indicator, displays Green Unlocked/Red Locked on inside of opening
  • For doors 1-3⁄4" thick.
  • Body is 4-3/32" deep x 5-31/32" high.

More Info

  • ANSI F04, 05 Office/Entry 05
  • Key outside retracts latchbolt, also locks & unlocks outside lever.
  • Lever inside always retracts latchbolt, trim outside remains locked.
  • Thumbturn inside locks & unlocks outside trim
  • Auxiliary deadlatch.
  • Handing - field reversible.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard
  • Meets positive pressure requirements UL 10C and UBC 7-2.
  • UL and CUL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile.
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
