Sargent 12-2499-EN

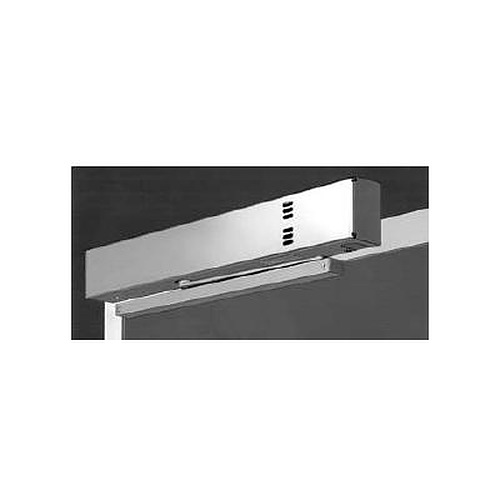

Special Order 12-2499 Fire Guard Electromechanical Closer-Holder

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 12-2499-EN

Choose Options Below

Electromechanical Fire Guard 2499 Closer-Holder Release Devices are designed to hold open fire and smoke rated doors until power is interrupted by a fire alarm condition or remote release switch.With an integrated photoelectric smoke detector for use in existing facilities lacking a fire/smoke detection system or where a redundant system is required for added life and safety protection.Push side mount.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.

If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door



Overview

Special order item with 4 week lead time.
  • Photoelectric smoke detector with LED indicator.
  • Can be installed on a single door or a pair of doors when controlled by compatible UL Listed Fire Detection
    equipment or non-rated doors with remote release.
  • Voltage-120VAC
  • Conforms to standards UL10C and UBC 7-2 (1997), Positive Pressure Fire Tests of door assemblies.
  • Multi position hydraulic hold open.
  • Hold open positions from 70° to 170°
  • Handed.
  • Push side mount.
  • Sprayed aluminum finish.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

Closer
  •  ANSI/ BHMA A156.4 Grade 1 Closer
  •  Rack and pinion operation.
  •  Body is cast, one piece high strength aluminum/silicon alloy.
  • Adjustable spring power.
  •  Adjustable closing and latching speeds.

More Info

  • ANSI/ BHMA A156.4 Grade 1 Closer.
  • Adjustable spring power.
