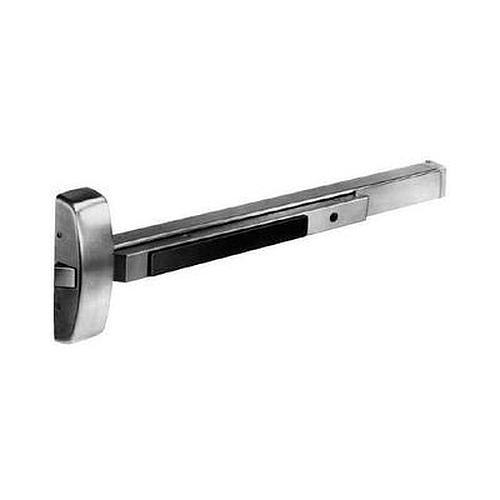

Sargent 12-8813-F-ETL-32D

• Single point rim latching device.
• Classroom function-Key outside unlocks/locks lever.
• Mortise cylinder included.
• F Rail for 33" to 36" door widths, No cutting required for 36" door.
• Meets ANSI/BHMA A156.3 2001 Grade 1 standards.
• Ul Fire Rated.
• UL listed for panic.
• For 36" door opening.
• Designed for standard width stile applications on metal and wood doors.
• Includes wood and machine screws.

Available Options: Choose Options Above

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.





  Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse (LHR)
  • Right Hand Reverse (RHR)

• Finish:

  • 32D Satin Stainless Steel
