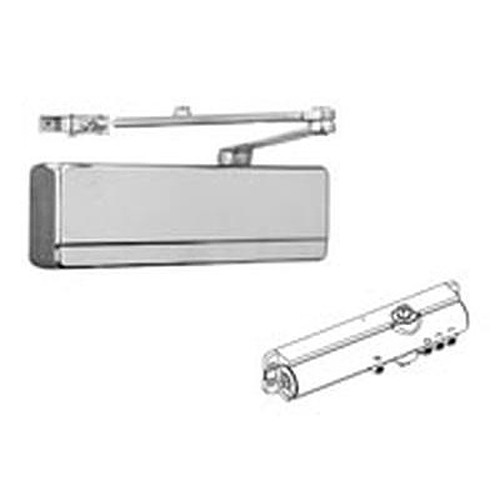

Sargent 1431-PH10

Special order item with 4 week lead time.

• Adjustable spring size1-6 set at size 3
• With PH10- heavy duty friction hold open parallel arm.
• Adjustable hold open from 75° to 180°
• Forged steel arm 11-1/4" long
• Handed same as door
• Separate latching, sweep and back check intensity valves
• Use friction hold open arms for doors subject to moderate hold open use

Available Options: Choose Options Above

• Handing:

  Handing

  ×





  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  The door is Left Handed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Handed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand (LH)
  • Right Hand (RH)

• Finish:

  • Aluminum Enamel (EN)
  • Dark Bronze Enamel (EB)
