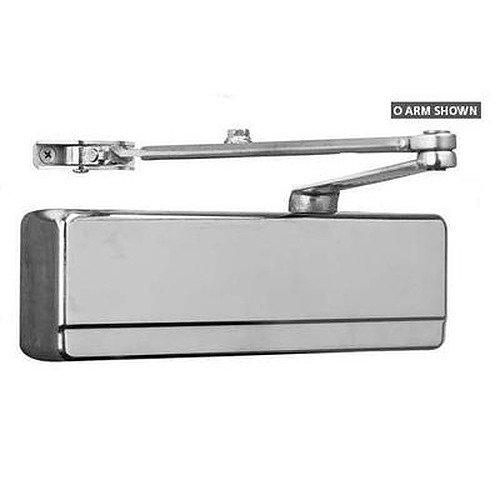

Sargent 1431-PSH

Special Order Powerglide Adjustable Door Closer with PSH Arm

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 1431-PSH

Choose Options Below

No one can stock every item from every vendor. We will gladly special order any item from any of the vendors we carry. Please call us for pricing and availability for that hard to find item or finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Aluminum Enamel (EN) Aluminum Enamel (EN)
Dark Bronze Enamel (EB) Dark Bronze Enamel (EB)

Overview

Special order non stock item with 4 week lead time.
  • Heavy duty one piece die cast aluminum silicon alloy body.
  • Heavy Duty Parallel Hold Open Arm with positive Stop.
  • Size - Adjustable 1-6 set at size 3.
  • Separate latching, closing/sweep and back check intensity valves.
  • All weather fluid.
  • Arm provides holder and stop features.
  • Handed arm is field-reversible.
  • Permits 85 degree to 110 degree door opening.
  • High impact non-corrosive plastic cover standard.

Available Options: Choose Options Above

More Info

  • Meets and exceeds ANSI/BHMA A156.4 Grade 1 requirements.
  • UL Listed for use on fire doors and conforms with standards UL10C.
  • Rack and pinion construction.
  • Closer bodies are non-handed.
  • Standard pressure relief valve for Backcheck.
  • Dimensions with cover-12" L x 3-3/8" H.
  • Projection of closer, 2-1/4" with standard cover.
