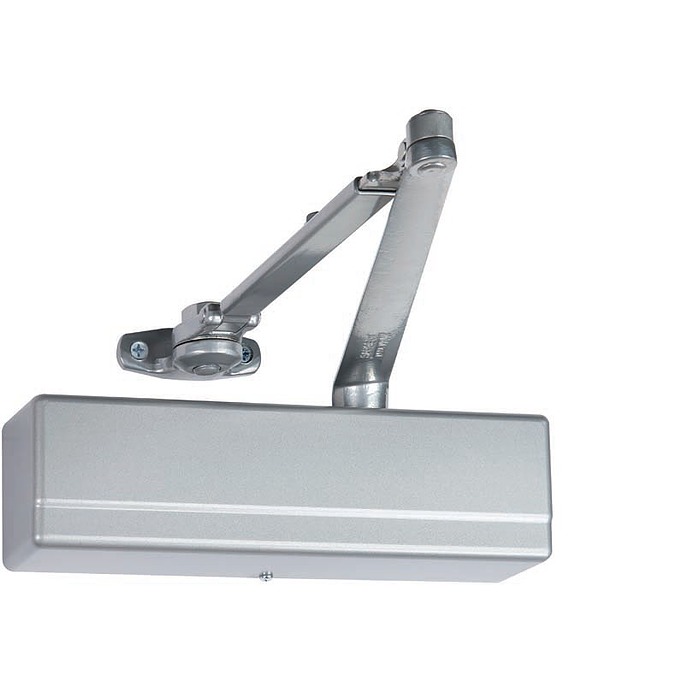

Sargent 1431

Powerglide Adjustable Door Closer (Replaces 1230 and 1231)

Quick Product Details

  • Door closer
  • Heavy Duty
SKU: 1431

Price: $223.00 /each

Choose Options Below

This Sargent 1431 is an aluminum door closer that can be adjusted to fit the application. This series is suitable for applications with narrow top rails. The 1431 includes separate intensity valves for latch-speed, closing-speed and backcheck. Package includes a high-impact, non-corrosive, plastic cover as the standard.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $223.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Select Arm:

Need Help Deciding?

Help Me Decide

1. Universal - a standard arm which includes brackets for installation in standard, top jamb and parallel applications

2. Hold open - a door closer arm with the capability of holding the door in the open position       until it is manually closed. Hold-open arm door closers are not permitted for use on fire door assemblies.

3. Parallel - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware  projecting beyond the frame face in most situations. This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

*Package includes brackets to install closer in standard, top jamb or parallel applications.



Choose Finish:

Replacing Your Door Closer?

Product Finder


Suited for:
  • Exterior and interior commercial and industrial applications  with narrow top rails

Quality and Safety:
  • Exceeds ANSI/BHMA Grade 1 156.4 standards
  • Meets ADA requirement for barrier free accessibility
  • UL listed for use on fire doors
  • Conforms with Positive pressure fire test standards - UL10C and UBC 7-2
  • 10 year limited warranty

Special Orders Available:
  • More unlisted finishes available
  • Available with the delayed action feature
Contact us directly to place your special order.

Available Options: Choose Options Above

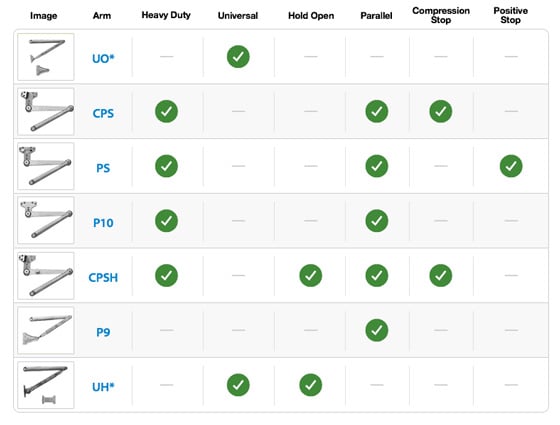

  • Select Arm: info icon

    • UO-Standard,Top Jamb or Parallel Applications
    • CPS-Heavy Duty Parallel Arm with Compression Stop
    • PS-Heavy Duty Parallel Arm with Positive Stop
    • P10-Heavy Duty Parallel Arm
    • CPSH-Hold Open Parallel Arm with Compression Stop
    • UH-Universal Hold Open Arm -Standard, Top Jamb or Parallel Applications
  • Finish:

Product at A Glance

  • Separate latch-speed, closing-speed and backcheck intensity valves
  • Size is adjustable from 1 - 6, set in factory at 3
  • Retrofits the discontinued 1230 and 1231 Sargent closers
  • Heavy duty one piece aluminum silicon alloy body
  • Includes high impact, non-corrosive plastic cover (standard)
  • Heavy duty forged steel arms are  interchangeable between Sargent 281, 351 and 1437
  • Supplied with All-weather fluid
  • Standard pressure relief valves for both opening and closing valves protect the door and frame from damage caused by abuse
  •  Features standard pressure relief valves for backcheck
Style Door Closer
Grade Heavy Duty
Handing Non-handed
Mounting Hole Spacing Horizontally - 1", vertically - 11-1/8"
Opening Degrees Up to 120 degrees with standard mounting
Dimensions (with cover) Length - 12" by height - 3-3/8"
Projection of Closer 2-1/4" (with standard cover)

This closer provides flexibility to match nearly any commercial or industrial application. It is specifically suited for doorways with a narrow top rail. There are many arm options available to adapt the closer to perfectly accommodate the needs of your installation. This closer is also UL listed for use on fire rated doors.




1431D Drop Bracket

Drop Bracket

Price: $55.00
