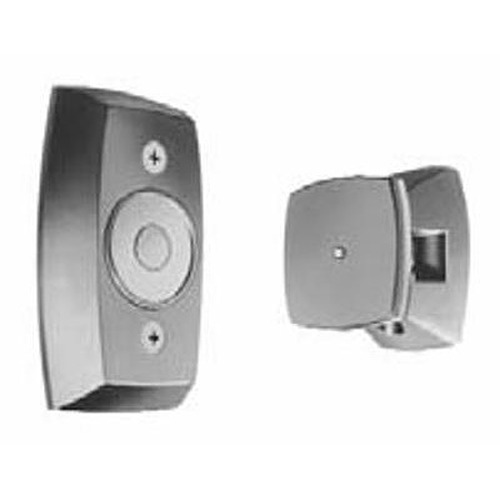

Sargent 1561

Flush Mount Electromagnetic Door Holder

Quick Product Details

  • Electromagnetic Door Holder
  • Flush Mounted
Price: $312.00 /each

SKU: 1561

Choose Options Below

This Sargent 1561 electromagnetic door holder is used on self-closing, fire and smoke barrier doors. It can be used independently or with any smoke detector system. This holder will fit a standard outlet box. It is a fail safe device which is a safety feature that will release a door in the event of power loss.

  • Stock Item
  • Order in the next 17 hours 58 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $312.00

Choose Finish:

EN (689) Sprayed Aluminum EN (689) Sprayed Aluminum

Overview


Quality and Safety:
  • Meets ANSI A156.15 standards
  • UL/ULC listed to U.S. and Canadian safety standards
  • 1 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Designed for use with self-closing fire and smoke barrier doors
  • Can be used independently or with any smoke detector system
  • Fits standard outlet box
  • Fail Safe device
  • A 1” extension is included to increase the armature projection to 2-5/8”
Style Electromagnetic door holder
Application Flush mounted
Holding Force 35 lbs.
Wiring Concealed
Voltage Tri-volt: 120VAC, 24VAC/DC, 12VDC

More Info


Smoke barrier doors are often used in applications such as hospitals and other medical facilities to prevent having to evacuate patients during a fire emergency so that they can continue to receive the medical care necessary. These doors will remain open at all times except when the holder is released by the smoke detector system it is connected to, to keep the fire and smoke out of that area.
