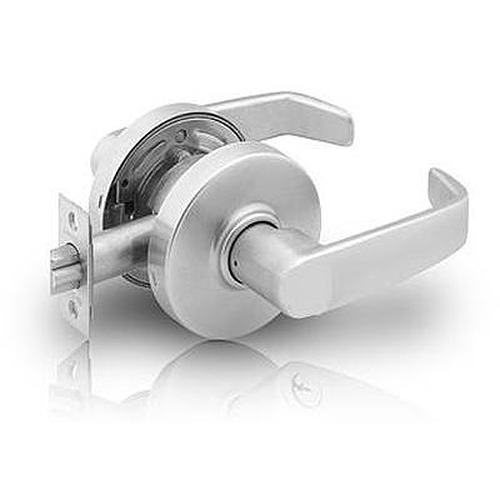

Sargent 20-1-7U15-L

Special Order Standard Duty Duty Passage Lever for 1-3/8" Door

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 20-1-7U15-L

Choose Options Below

The Sargent 7 line 7U15 passage function lever lock is designed for standard duty commercial interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings. Passage functions-both levers always unlocked. For doors 1-3/8" thick with a 2-3/8" backset.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Lever:

B B
L L
P P

Overview

Special order non stock item with 4 week lead time
  • Passage function, both levers always unlocked.
  • For doors 1-3/8" thick,shims included.
  • L style rose.
  • Satin chrome finish-US26D
  • Backset -2-3/8" w/shim kits to fit 1-3/8" door.
  • 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip standard.
  • Latch-2-1/4" x 1" front, brass 1/2" throw.
  • Door Prep 161 (2-1/8" cross-bore with a 2-3/8" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high ).

Available Options: Choose Options Above

More Info

  • All levers conform to ADA requirement for barrier-free accessibility.
  • Minimum Stile 4-1/2".
  • Meets ANSI A156.2 Series 4000 - Grade 2.
  • UL listed to U.S.A. and Canadian safety standards. Listed for 3 hour doors.
