Sargent 20-7G04-LB-26D

Special Order Standard Duty Storeroom Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 20-7G04-LB-26D

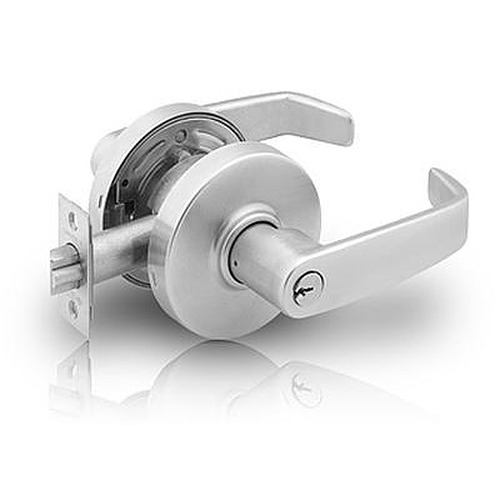

The Sargent 7 line 7G04 storeroom function key-in-lever lock is designed for standard duty commercial exterior and interior doors in offices, commercial interiors, medical clinics, government facilities and public buildings.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • Standard duty commercial storeroom lock.
  •  Always locked on the outside, requires a key for entry, Inside lever is always free.
  • Satin chrome finish-US26D
  • For doors 1-3/4" thick.
  • Cylinder - Sargent 6 pin LA keyway cylinder keyed different.
  • Levers conform to ADA requirement for barrier-free accessibility.
  • Backset -2-3/8".
  • 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip standard.
  • Latch- Brass 1/2" throw,  2-1/4" x 1-1/8".
  • L style rose with B style lever.

More Info

  • ANSI F81
  • Minimum Stile 4-1/2".
  • Internal through-bolts supply strength and stability without requiring additional door preparation.
  • Meets ANSI A156.2 Series 4000 - Grade 2.
  • UL-UL listed to U.S.A. and Canadian safety standards. Listed for 3 Hour Doors.
