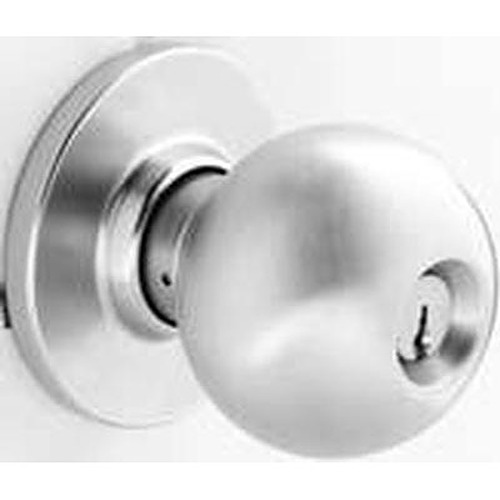

Sargent 24-6G05

6 Line Entrance Knob Lock

Quick Product Details

  • Knob Set
  • Standard Duty
  • Entrance/Office Function
Price: $171.00 /each

SKU: 24-6G05

Choose Options Below

This Sargent 6G05 6 Line is a knob lock that is fashionably designed and made to fill the needs of locks for homes, hotels, apartments and commercial buildings. It is standard duty, and operates as an entrance/office function lock. Supplied in O style rose and B style knob.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $171.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) + $3.00 Polished Brass (US3) +$3.00
Oil Rubbed Bronze (US10B) + $3.00 Oil Rubbed Bronze (US10B) +$3.00
Satin Chrome (US26D) Satin Chrome (US26D)

Choose Cylinder:

LA-Keyway 6 Pin Cylinder Keyed Different
No Cylinder Needed (LC) Subtract -($41.30)

Help Me Decide

LA-KD 6 pin Rim cylinder LA cylinder keyed different.  The LA cylinder is the Sargent standard cylinder

Overview


Suited for:
  • Standard duty applications

Quality and Safety:
  • Exceeds ANSI/BHMA 156.2 series 4000 Grade 2 durability standards
  • UL listed for USA and Canadian safety regulations; listed for use on 3-hour doors
  • 1 year limited warranty
  • Deadlocking latch to prevent lockpicking by credit card

Door preparation: (161 standard)
  • Cross borehole - 2-1/8"
  • Backset - 2-3/4”
  • 1” edge borehole
  • Mortise - width 1-1/8”, height 2-1/4”

Convenience:
  • For easy installation and maintenance, this lock is installed with just two lock-body screws

Special Orders Available:
  • More unlisted finishes available
Contact us directly to place your special orders.


Available Options: Choose Options Above

Product at A Glance

Style Key-in-knob lock
Grade Standard duty
Function Entrance or Office Function:
- Key in the outside knob retracts the latch
- Button on inside knob can be pushed in and turned to lock the outside knob
- Inside knob is always free
- ANSI F81
Handing Non-handed
Backset 2-3/4"
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" (ANSI A-115.2)
Latch 2-1/4" x 1-1/8"
Throw 1/2"
Door Thickness 1-3/8" adjustable to 1-3/4"
Stile 4" (minimum)
Design - Rose - O style
- Knob - B style
