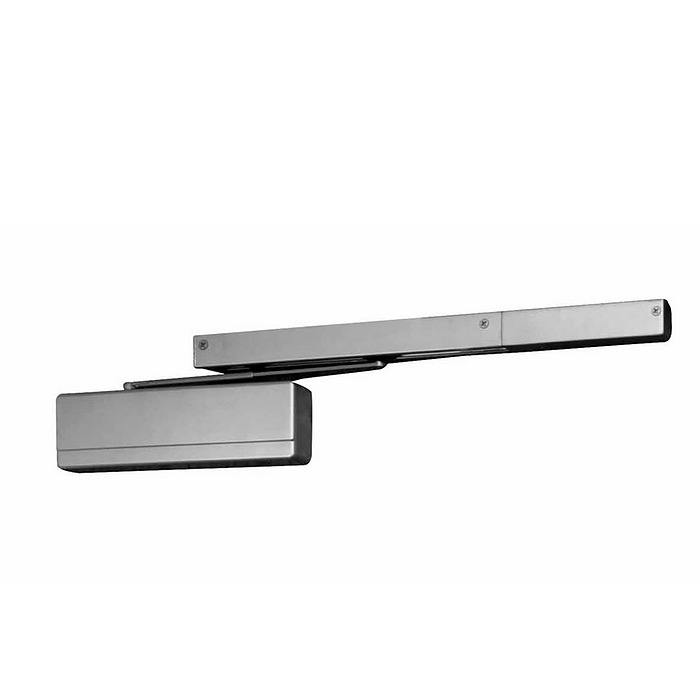

Sargent 2499-24VAC/DC-EN

Special Order 2499 Push Side Elcectro-Mechanical Closer Holder

Price: $1,107.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 2499-24VAC/DC-EN

Choose Options Below

Electromechanical Fire Guard 2499 Closer-Holder Release Devices are designed to hold open fire and smoke rated doors until power is interrupted by a fire alarm condition or remote release switch. This system must be tied in to the existing fire alarm system and appropriate relay. Push side mount.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $1,107.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Operating Voltage:

24VDC/24VAC
120VAC

Overview

Special order item with 4-6 week lead time.
  • Does not contain a smoke detector, must be tied in to existing smoke detector/fire alarm system with appropriate relay board
  • Can be installed on a single door or a pair of doors when controlled by compatible UL Listed Fire Detection
    equipment or non-rated doors with remote release.
  • Voltage-24VDC/VAC or 120VAC
  • Conforms to standards UL10C and UBC 7-2 (1997), Positive Pressure Fire Tests of door assemblies.
  • Multi position hydraulic hold open.
  • Hold open positions from 70° to 170°
  • Non-Handed.
  • Push side mount.
  • Sprayed aluminum finish.

Available Options: Choose Options Above

  • Operating Voltage:

    • 24VDC/24VAC
    • 120VAC

Product at A Glance

Closer
  •  ANSI/ BHMA A156.4 Grade 1 Closer
  •  Rack and pinion operation.
  •  Body is cast, one piece high strength aluminum/silicon alloy.
  • Adjustable spring power.
  •  Adjustable closing and latching speeds.

More Info

  • ANSI/ BHMA A156.4 Grade 1 Closer.
  • Adjustable spring power.
