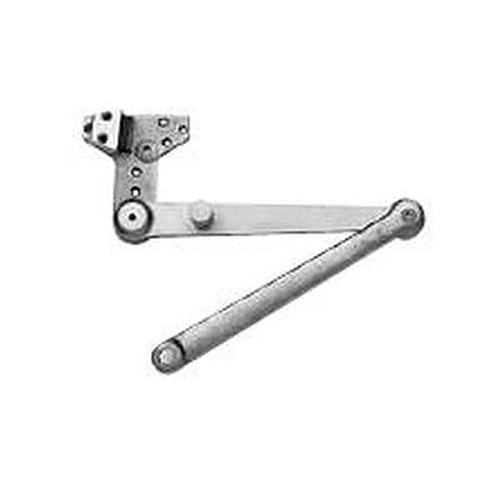

Sargent 25 CPSH-EAB

Special Order Heavy Duty Hold Open Parallel Arm with Compression Stop

Quick Product Details

  • Parallel arm
  • Hold-Open
  • Heavy Duty
  • Used with: 281, 351 and 1431 series door closers
SKU: 25 CPSH-EAB

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

Choose Options Below

This Sargent 25 CPSH-EAB is heavy duty parallel arm that includes a hold open mechanism and a compression stop that can be set between 85° and 105° of opening swing. Compression stop is used in applications where there is a high traffic rate or potentially abusive installation conditions. Sprayed satin brass finish.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: Call for Pricing 1-866-749-7661

Choose Options

Choose Finish:

Painted Brass Painted Brass

Overview

Special order non stock item with 4 week lead time

Available Options: Choose Options Above

Product at A Glance

  • Painted satin brass finish finish
  • Forged steel arm
  • Used when door closer must be mounted on the push side of the door - parallel arm installation
  • Features Hold open - will hold the door in the open position until it is manually closed
  • Not permitted for use on fire door assemblies
  • Includes a built-in compression stop and holder mechanism between 85 and 105 degrees
  • Dead stop within 3 degrees
  • Includes main arm, arm and bracket assembly,bumper, bumper holder and screw pack
Style Parallel arm
Used With 281, 351 and 1431 series door closers
Handing Handed - field reversible
Door Opening Up to 105 degrees
Hold Open 85 to 105 degrees
Arm Length 11-1/4"

More Info


This 25 CPSH is not only a terrific parallel arm with a compression stop, but it also includes the hold-open feature. This function will hold the door open at the set position until it is closed manually. It is therefore not permitted for use on fire door assemblies which need to close on their own. The hold-open position can be set anywhere between 85° to 105°.
