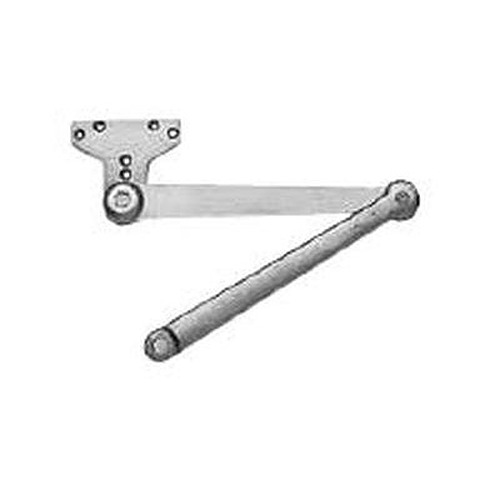

Sargent 25 PH10

Heavy Duty Friction Hold Open Parallel Arm

Quick Product Details

  • Parallel arm
  • Heavy Duty
  • Friction hold-open
  • Used with: 281, 351 and 1431 series door closers
Price: $190.00 /each

SKU: 25 PH10

Choose Options Below

This Sargent 25 PH10 is a friction hold-open parallel arm installation used with the 281, 351 and 1431 series door closers when necessary. Hold open feature will keep the door open until it is manually closed and therefore this arm cannot be used on fire door assemblies.

  • Stock Item
  • Order in the next 22 hours to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $190.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Dark Bronze Enamel (EB) Dark Bronze Enamel (EB)
Aluminum Enamel (EN) Aluminum Enamel (EN)

Help Me Decide


Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.







  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door



Overview

Available Options: Choose Options Above

  • Finish: info icon

  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)

Product at A Glance

  • Forged steel arm
  • Equipped with adjustable friction holder
  • Hold open - will hold the door in the open position until it is manually closed
  • Not permitted for use on fire door assemblies
  • Use friction hold-open arms for doors subject to moderate hold open use
  • Used when door closer must be mounted on the push side of the door - parallel arm installation
  • Includes main arm, left hand arm and bracket, right hand arm and bracket assembly and screw packs
Style Parallel Arm
Grade Heavy duty
Used With 281, 351 and 1431 series door closers
Handing Handed
Hold Open 75 to 180 degrees
Arm Length 11-1/4"

More Info


When a door application requires the arm to be mounted on the push side, a parallel arm should be used. This parallel arm includes the additional feature of friction hold-open. The hold-open option allows you to set the door to remain open at a certain point of opening. This feature renders an opening non fire safe and can therefore not be used on fire-rated openings.
