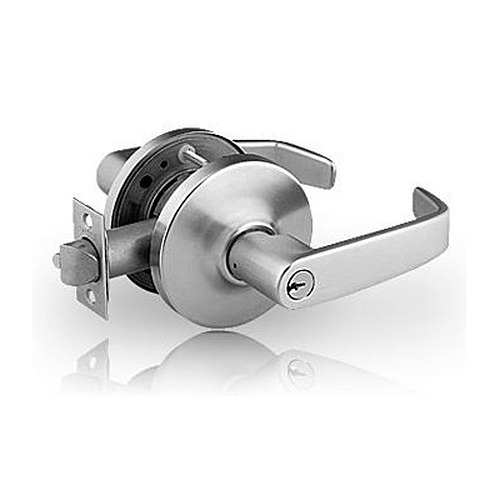

Sargent 28-10G04-LL-3

Special Order Heavy Duty Storeroom Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 28-10G04-LL-3

Choose Options Below

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Choose FINISH:

Polished Brass Polished Brass

Overview

Special order non stock item with 4 week lead time.
  • Storeroom function
  • Polished brass finish.
  • Grade 1 extra heavy duty cylindrical key-in-lever lock.
  • With L style lever and L rose.
  • For doors - 1-3/4" thick adjusts to 2".
  • With 6 pin LA keyway keyed different .
  • Backset - 2-3/4". The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw.
  • Strike - 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4curved lip.
  • Door Prep 161 Modified with 2 thru bolt holes. (2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high).

Available Options: Choose Options Above

More Info

  • 04 Storeroom function
  • Storeroom or Closet Function:- Always locked on outside lever - Requires a key for entry
    - Inside lever is always free.
  • Minimum Stile 4-1/2".
  • Non Handed.
  • UL listed to U.S.A. and Canadian safety standards. Listed for 3 hour doors.
  • Positive Pressure - Meets UL 10C and UBC 7-2 (1997).
  • ADA- All levers conform to ADA requirement for barrier-free accessibility.
