Sargent 28-60-10G70-24VDC-LL-26D

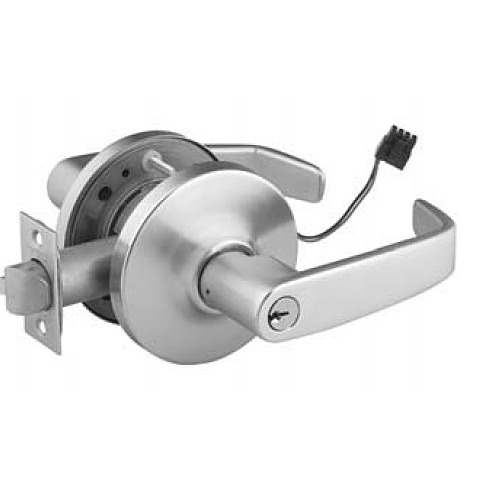

Special Order Fail Safe Electromechanical Heavy Duty Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 28-60-10G70-24VDC-LL-26D

The Sargent 10 Line 10G70 Electromechanical heavy duty cylindrical key-in-lever lock is designed for commercial and institutional applications on interior and exterior doors. The 10 line is the standard for institutional applications such as medical, educational and municipal facilities. Latch retracted by lever inside or key outside. Fail safe, power off, unlocks outside lever. Outside locked at all times. Inside lever unlocked at all times.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

QH phone left

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?


Special order non stock item with 4 week lead time.
  • Fail Safe electromechanical heavy duty lever with key override.
  • For doors -1-3/4" thick adjusts to 2".
  • Voltage requirements- 24VDC regulated.
  • Provided with ElectroLynx™ 8 pin connector.
  • Cylinder - prepped for Sargent large format removable core, core not included.
  • Backset-2-3/4". The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Fail safe, power off, unlocks outside lever.


More Info

  • With "L" style rose and lever.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip.
  • Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw.
  • Key retracts latch
  • Deadlocking latch
  • Inside lever unlocked at all times.
  • Minimum Stile 4-1/2".
  • Non Handed.
  • UL listed to U.S.A. and Canadian safety standards. Listed for 3 hour doors.
  • Positive Pressure- Meets UL 10C and UBC 7-2 (1997).
  • ADA- All levers conform to ADA requirement for barrier-free accessibility.
