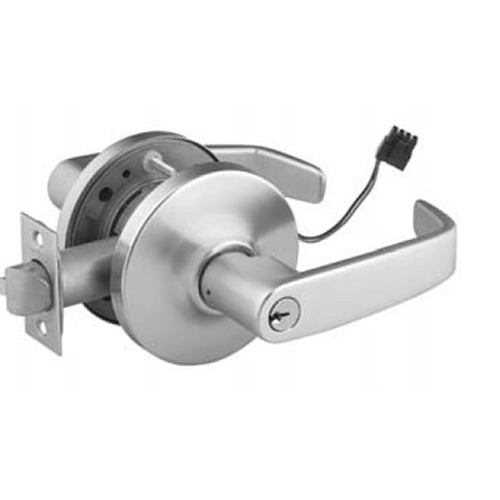

Sargent 28-70-RX-10G71-GL-24V-26D

Special Order Fail Secure Electromechanical Heavy Duty Lever

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 28-70-RX-10G71-GL-24V-26D

Choose Options Below

The Sargent 10 Line 10G71 Electromechanical heavy duty cylindrical key-in-lever lock is designed for commercial and institutional applications on interior and exterior doors. The 10 line is the standard for institutional applications such as medical, educational and municipal facilities. Latch retracted by lever inside or key outside. Fail secure, power off,locks outside lever. Outside locked at all times. Inside lever unlocked at all times.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

Special order non stock item with 4 week lead time.
  • Fail Secure electromechanical heavy duty lever with key override.
  • For doors -1-3/4" thick adjusts to 2".
  • With RX switch,monitoring of Inside Lever.
  • Voltage requirements- 24VDC regulated.
  • Provided with ElectroLynx® 8-Pin Connector.
  • Prepped for Best type small format IC core. Core not included.
  • Backset-2-3/4". The backset is the distance from the edge of the door to the center of the 2-1/8-inch bore hole in the face of the door.
  • Fail secure, power off, locks outside lever.



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • With "G style rose and L style lever.
  • Strike- 4-7/8" ANSI A-115.2 Curved Lip Strike with 1-1/4" curved lip.
  • Latch-2-1/4" x 1-1/8" front, Stainless steel 1/2" throw.
  • Key retracts latch
  • Deadlocking latch
  • Inside lever unlocked at all times.
  • Minimum Stile 4-1/2".
  • Non Handed.
  • UL listed to U.S.A. and Canadian safety standards. Listed for 3 hour doors.
  • Positive Pressure- Meets UL 10C and UBC 7-2 (1997).
  • ADA- All levers conform to ADA requirement for barrier-free accessibility.
