Sargent 281

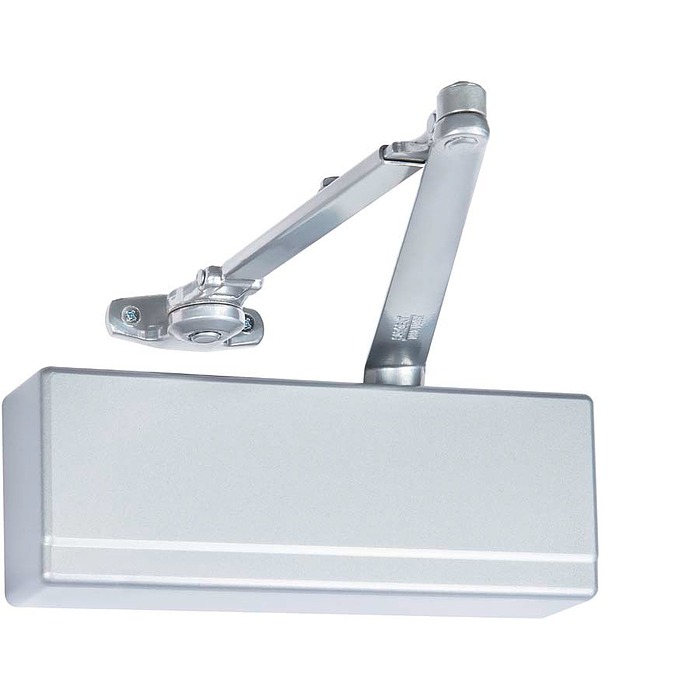

Powerglide Adjustable Cast Iron Door Closer

Quick Product Details

  • Door closer
  • Heavy Duty
  • Retrofits the discontinued 1250 Sargent closers
SKU: 281

Price: $269.00 /each

Choose Options Below

This Sargent 281 series powerglide adjustable cast iron door closer is for use in heavy duty commercial or industrial applications on exterior and interior doors. The spring size is adjustable to fit any application. Select an arm below that will suit the needs of your application

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $269.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

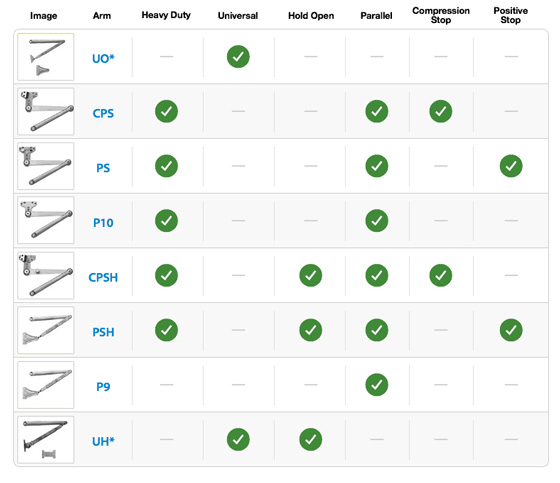

Choose Select Arm:

Need Help Deciding?

Help Me Decide

1. Universal - a standard arm which includes brackets for installation in standard, top jamb and parallel applications

2. Hold open - a door closer arm with the capability of holding the door in the open position       until it is manually closed. Hold-open arm door closers are not permitted for use on fire door assemblies.

3. Parallel - a door closer arm that mounts on the push side of the door and the arm assembly extends almost parallel to the door. In the closed position, there is very little, or no hardware  projecting beyond the frame face in most situations. This may be beneficial in vandalism prone areas. Due to the geometry of the arm it may be about 25% less power-efficient than a regular arm application.

*Package includes brackets to install closer in standard, top jamb or parallel applications.



Choose Finish:

Replacing Your Door Closer?

Product Finder

Overview


Suited for :
  • Exterior and interior commercial and industrial applications

Quality and Safety:
  • Exceeds ANSI/BHMA Grade 1 156.4 standards
  • Meets ADA requirement for barrier free accessibility
  • UL listed for use on fire doors
  • Conforms with Positive pressure fire test standards - UL10C and UBC 7-2
  • 10 year limited warranty

Special Orders Available:
  • More unlisted finishes available
  • Available with the delayed action feature
Contact us directly to place your special order.


Available Options: Choose Options Above

  • Select Arm: info icon

    • UO - Standard, Top Jamb or Parallel Applications
    • CPS
    • PS
    • P10
    • CPSH
    • PSH
    • P9 - Standard Parallel Arm
    • UH
  • Finish:

Product at A Glance

  • Separate latch-speed, closing-speed and backcheck intensity valves
  • Size is adjustable from 1 - 6, set in factory at 3
  • Mounting bracket included for easy installation of cast iron
  • Heavy duty cast iron body
  • Includes a high impact, non-corrosive plastic cover (standard)
  • Heavy duty forged steel arms are  interchangeable between Sargent 281, 351 and 1437
  • All-weather fluid feature supplied
  • Standard pressure relief valves for both opening and closing valves protect the door and frame from damage caused by abuse
Style Door closer
Grade Heavy duty
Handing Non-handed
Mounting Hole Spacing - Horizontally - 10-3/8"
- Vertically - 1"
Opening Degrees Up to 120 degrees with standard mounting
Dimensions (with cover) Length - 11-3/16" by height - 4-3/8"
Projection of Closer 2-3/16" (with standard cover)

The Sargent 281 door closer is engineered to provide uncompromised strength and durability for high use commercial applications. It features a heat treated full rack and pinion that will ensure wear resistance and a one piece  cast iron body with a very high endurance level. The 1/2” arm engagement over the 7/16”  square spindle is specially designed to provide a wear resistant tight joint.
