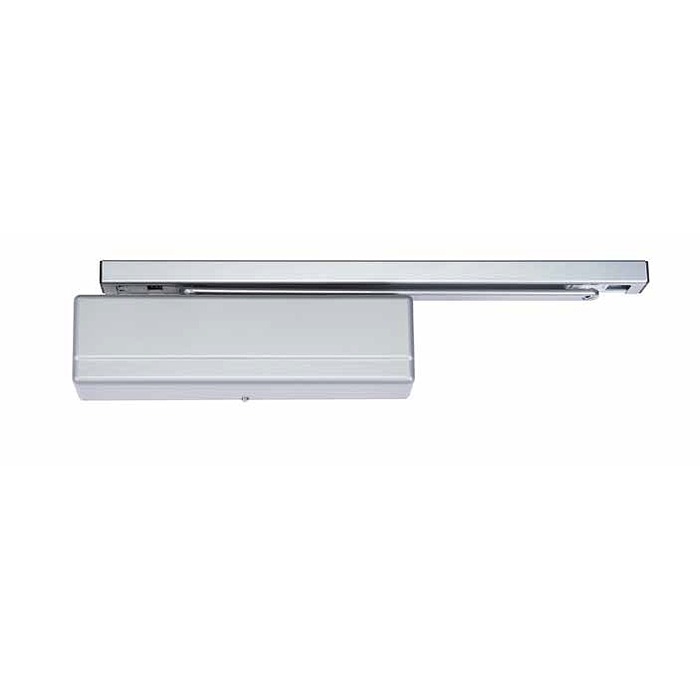

Sargent 422-CTB2-TB

Special Order Cam Action Track Door Closer

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 422-CTB2-TB

Choose Options Below

The 422 Cam Action Door Closer provides the highest performance of any track type door closer made today. Its innovative cam action design applies the closing forces in exactly the proper locations for smooth and efficient operation. The result is a door that is light to open and still has more than enough power to close.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Bronze Enamel (EB) Bronze Enamel (EB)
Aluminum Enamel (EN) Aluminum Enamel (EN)

Overview

Special order non tock item with 4 week lead time
  • The pull side application,the closer body mounts to the face of the door and the track mounts to the face of the frame.
  • Maximum door swing 125°.
  • Adjustable spring power allows 422 closers a size range of 1 through 6.
  • Adjustable steel stop included in track that provides dead stop positions between 70°and 125°.
  • 2-1/2" minimum door top rail.
  • Auxiliary stop required for abusive environments. Easily remove when not required.
  • Designed to meet ADA requirements in push  or pull track applications.

Available Options: Choose Options Above

More Info

  • Backcheck valve,  At approximately 70° of the open cycle, the Backcheck valve begins to slow the door’s motion.
  • Closing speed valve controls how fast the door closes from fully open to approximately 8" from the closed position.
  • Latching speed valve • Controls the speed of the door during the final 8" of door swing  Note: This adjustment is critical for door latching.
  • UL 10C listed for positive pressure fire test.
  • UL / cUL listed for use on fire rated doors.
