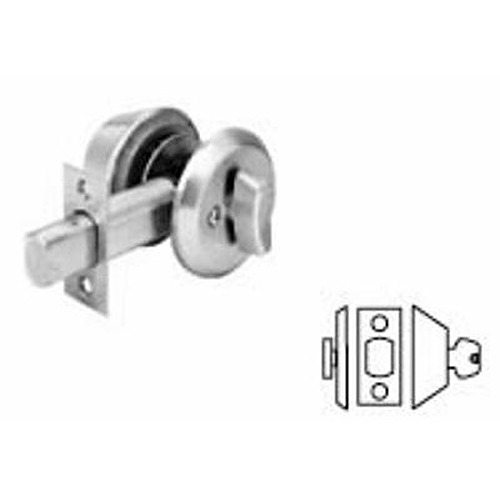

Sargent 485-26D-RE

Special Order Single Cylinder Cylindrical Deadbolt with RE Keyway

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 485-26D-RE

Choose Options Below

The Sargent 485 single cylinder heavy duty deadbolt is ideally suited for heavy duty industrial and commercial applications

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) + $4.00 Polished Brass (US3) +$4.00
Oil Rubbed Bronze (US10B) + $4.00 Oil Rubbed Bronze (US10B) +$4.00
Satin Chrome (US26D) Satin Chrome (US26D)

Overview

Special order item with 4 week lead time.

  • Key outside operates deadbolt , turn lever inside operates deadbolt
  • For doors 1-3/8" to 1-3/4" thick standard
  • Cylinder - Sargent 6 pin RE keyway keyed different
  • Backset - 2-3/4" standard.

Available Options: Choose Options Above

More Info

  • Fits 161 standard cut outs ( 2-1/8" cross-bore with a 2-3/4" backset, and
    a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high
  • ANSI  EO151
  • 404 Standard Strike-2-3/4"X 1-1/8"
  • Solid steel bolt with hardened steel pin insert  7/8" x 5/8" x 1" throw
  • Non handed
  • UL/cUL- Listed UL listed to U.S. and Canadian safety standards
  • Positive Pressure- Conforms to standards UL 10C and UBC 7-2 (1997)
