Sargent 49-8265 E2MD-T2-US10BL

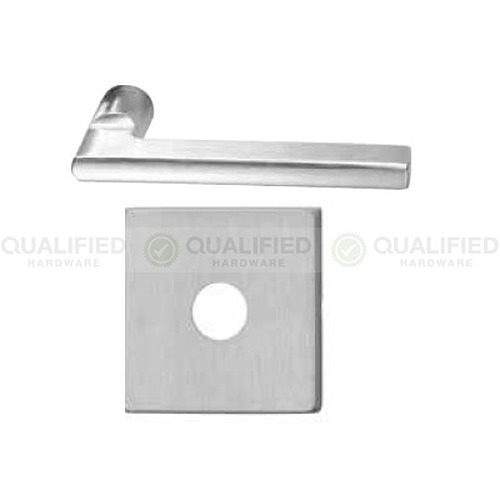

Special Order Privacy Function Complete Mortise Lock with Lever and Rose and Occupancy Indicator

Quick Product Details

  • Complete Mortise Lock
  • Privacy Function
SKU: 49-8265 E2MD-T2-US10BL

Price: Call for Pricing 1-866-749-7661

Special Order non-stock item Requires 4 week lead time

This Sargent 8265 mortise lockset includes a lever and rose . Operates with the privacy function (ANSI F22) for applications in hospitals, schools, universities, office buildings or government facilities where privacy is necessary.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Call for Pricing 1-866-749-7661

Have a question? Need help?
Call Us: 1-866-749-7661

  • Special Order
  • FREE Shipping

Have a question about this product?

Overview

Special order non stock item with 4 week lead time
  • Occupancy indicator.
  • With MD Studio collection lever and E2 Rose.
  • Dark oxidized satin bronze, clear coated-10BL
  • Trim outside retracts latchbolt except when locked by thumbturn.
  •  Trim inside retracts latchbolt and unlocks outside trim.
  •  Emergency Release locks/unlocks trim outside-by coin or screwdriver.
  •  Thumbturn locks and unlocks trim outside.
  •  Closing the door will unlock outside trim.



Product at A Glance

  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
Style Mortise lock
Function Privacy Function:
- Outside lever retracts the latch bolt, unless it is locked by thumbturn on the inside
- Inside lever retracts the latchbolt and unlocks the outside lever
- Thumbturn locks and unlocks the outside lever
- Closing the door will unlock the outside lever.
- Emergency release unlocks the outside lever
- ANSI F22
Design - Rose - E2 square style 2-11/16" high r>- Lever MD style Studio collection
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Body 4-3/32" deep X 5-31/32" high
