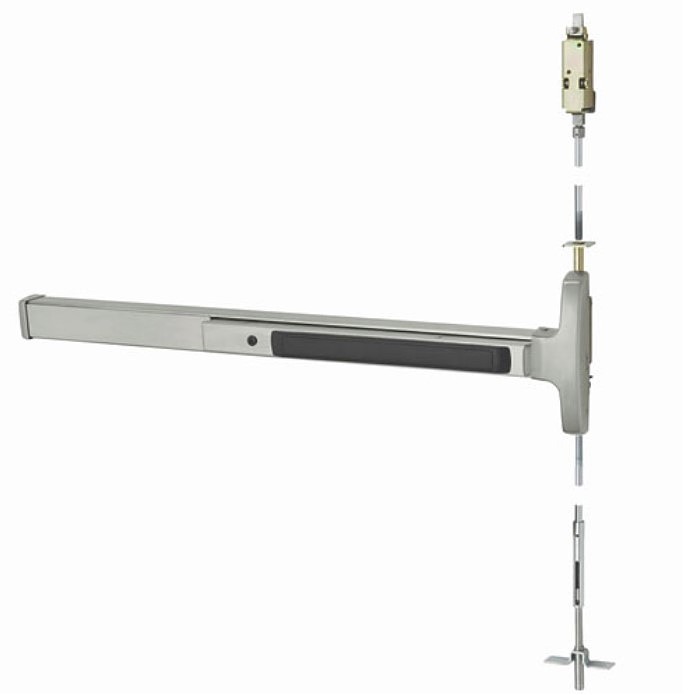

Sargent 59-8415F-ETL-630

• Designed for narrow stile applications such as full glass doors
• Door Types- Hollow metal or extruded aluminum. 1-3/4" thick
• 1-3/4" minimum stile width required. Stile must be hollow with inside dimension of at least 1-3/8" square
• Door always operable by outside trim (passage function)
• Opening Height - 96" for door height.
• Handed. Specify RHRB or LHRB.
• Specify Aluminum or Hollow Metal Door
• Specify Exact Door Size for ordering (specify by rough opening size)

Available Options: Choose Options Above

• 8410 AD/MD:

  • AD-Aluminum Door
  • MD Metal Door

• Finish:

  • US32D - Satin Stainless Steel

• Handing:

  Handing

  ×

  Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



  ​Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

  The door is Left Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your left side.

  The door is Right Hand Reversed if:

     • While you are standing outside of the room facing the door, the hinges are on your right side.

  Close
  • Left Hand Reverse - LHR
  • Right Hand Reverse - RHR

• Rail Size:

  Rail Size

  ×

  • 36" Rail (F) fits doors 33" to 36" wide
  • 48" Rail (G )fits doors 43" to 48" wide

  Close
  • 36" Rail (F) 33" to 36"
