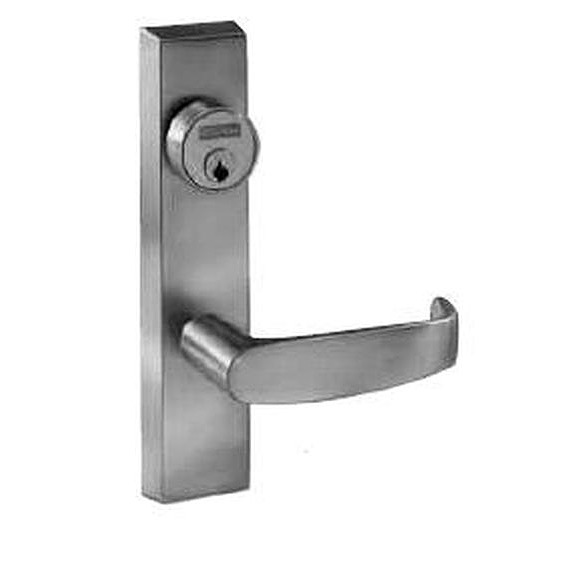

Sargent 713-8ET

ET Keyed Lever trim for 8888/8800 Exit Devices.

Quick Product Details

  • Lever Trim
  • 13 Function
  • Used with: 8800/8888 series exit devices
Price: $543.00 /each

SKU: 713-8ET

Choose Options Below

This Sargent 713-8ET is used in conjunction with 8800 and 8888 series exit devices. 13 function allows the lever/trim to be locked and unlocked with a key (ANSI 08). It is designed for doors that measure 1-3/4" in thickness.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $543.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)

Choose Keyway:

Need Help Deciding? QH chevron down
LA-KD (Keyed Different) LA-KD (Keyed Different)
LB LB
LC LC
LE LE
LF LF
LG LG
LJ LJ
LK LK
LL LL
RA RA
RB RB
RC RC
RE RE
RF RF
RG RG
RJ RJ
RK RK
RL RL
Prepped for Removable Core (RC) Prepped for Removable Core (RC)
Less Cylinder (LC) +$69.00

Help Me Decide

LA Keyway-KD (Keyed Different), all others 1 Bitted

Choose Handing:

Left Hand Reverse (LHR)
Right Hand Reverse (RHR)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



Doors equipped with exit devices swing out only, and therefore exit device handing is known as reverse bevel.

The door is Left Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Hand Reversed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Choose Lever:

ETB ETB
ETL ETL
ETP ETP

Overview

Available Options: Choose Options Above

  • Finish:

  • Keyway: info icon

    • LA-KD (Keyed Different)
    • LB
    • LC
    • LE
    • LF
    • LG
    • LJ
    • LK
    • LL
    • RA
    • RB
    • RC
    • RE
    • RF
    • RG
    • RJ
    • RK
    • RL
    • Prepped for Removable Core (RC)
    • Less Cylinder (LC)
  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
  • Lever:

    • ETB
    • ETL
    • ETP

Product at A Glance

Style Lever Trim
Used With 8800/8888 series exit devices
Function 13 Function:
- Key locks and unlocks lever/trim
- ANSI 08
Handing Handed - field reversible
Door Thickness 1-3/4"
