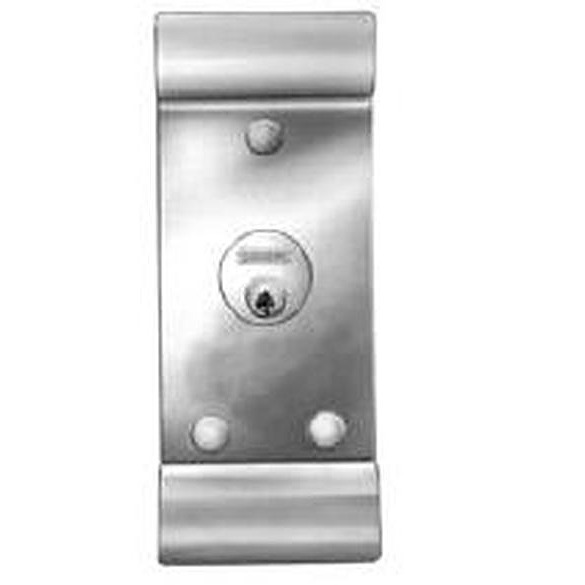

Sargent 814-HTB

Outside Pull with Cylinder Trim Pack for 3828 Exit device

Price: $114.00 /each

SKU: 814-HTB

Choose Options Below

Sargent 814-HTB, outside pull with cylinder trim pack for 3828 Exit device. For 1-3/4" doors standard

  • In Stock!
  • Order in the next 19 hours 53 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $114.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish :

Dark Bronze Enamel (EB) Dark Bronze Enamel (EB)
Aluminum Enamel (EN) Aluminum Enamel (EN)

Choose Cylinder:

LA-Keyway 6 Pin Cylinder Keyed Different
No Cylinder Needed (LC) Subtract -($41.80)

Help Me Decide

LA-KD 6 pin Rim cylinder LA cylinder keyed different.  The LA cylinder is the Sargent standard cylinder

Overview

  • 04 Function Key retracts latch
  • For 3828 device only
  • With 3 mortise nuts and screws for 1-3/4" doors
  • Pull project 1-1/2" from door face.
  • Trim will cover a 161 cutout (161 Door prep- 2-1/8" cross-bore with a 2-3/4" backset, and a 1" edge-bore with a mortise 1-1/8" wide and 2-1/4" high )
  • ANSI 03

Available Options: Choose Options Above
