Sargent 8205-LNMD-26D

Special Order Office or Entry Function Complete Mortise Lock with MD Lever and LN Rose

Get a Quote
Special Order non-stock item Requires 6 week lead time

SKU: 8205-LNMD-26D

Choose Options Below

Complete mortise locks contain everything needed for new or replacement installation. The Sargent 8205 complete Office or Entry function mortise lock. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools, Universities, Office Buildings and Government Facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Need Help Deciding? QH chevron down
Left Hand Reverse (LHR)
Right Hand Reverse (RHR)
Left Hand (LH)
Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview

Special order non stock item with 6 week lead time

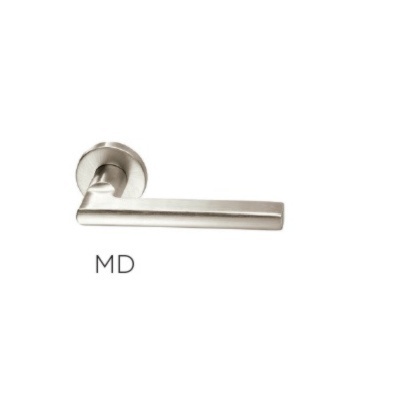

  • With MD style lever and LN rose.
  • Satin chrome -626 finish
  • LN rose has a 2-1/8" diameter.
  • Includes 1-1/8" mortise cylinder.
  • Complies with ADA- American Disability Act.
  • Backset- 2-3⁄4".
  • Handed,
  • For doors 1-3⁄4" thick.
  • Body is 4-3/32" deep x 5-31/32" high.

Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

More Info

  • ANSI F07, 05 Storeroom - 8205
  • Key outside retracts latchbolt, also locks & unlocks outside lever.
  • Lever inside always retracts latchbolt, trim outside remains locked.
  • Thumbturn inside locks & unlocks outside lever.
  • Auxiliary deadlatch.
  • Handing - field reversible.
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • Exceeds cycle testing requirements by 14 times the ANSI/BHMA A156.13 Grade 1 standard
  • Meets positive pressure requirements UL 10C and UBC 7-2.
  • UL and CUL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile.
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4".
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible.
