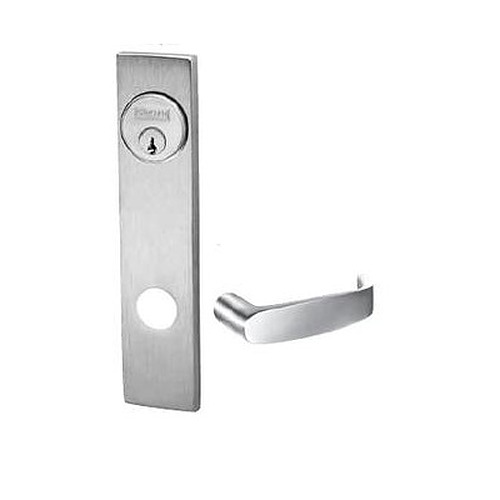

Sargent 8205LW1

Office or Entry Function Complete Mortise Lock with Lever and Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Exit-Only Function
SKU: 8205LW1

Price: $555.00 /each

Choose Options Below

The Sargent 8205LW1 Entrance or Office function mortise lock is furnished with a lever and a decorative plate that measures eight inches in height and 2 inches in width. Suitable for doors that are 1-3/4" thick whose stile measures a minimum of 4-1/2". Strike included is 4-7/8" curved lip strike with standard curved lip of 1-1/4".

  • In Stock!
  • Order in the next 38 hours 39 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $555.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Need Help Deciding?
B lever with LW1 Decorative Plate B lever with LW1 Decorative Plate
L lever with LW1 Decorative Plate L lever with LW1 Decorative Plate
P lever with LW1 Decorative Plate P lever with LW1 Decorative Plate

Help Me Decide

  • Lever with LW1 decorative plate.
  • Plate is 8" H x 2" W

Choose Finish:

US3 (Polished Brass) + $14.00 US3 (Polished Brass) +$14.00
US10B (Oil Rubbed Bronze) + $14.00 US10B (Oil Rubbed Bronze) +$14.00
US26 (Polished Chrome) + $14.00 US26 (Polished Chrome) +$14.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Cylinder:

Need Help Deciding?
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) Subtract -($39.60)
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LW1 Decorative Plate
    • L lever with LW1 Decorative Plate
    • P lever with LW1 Decorative Plate
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • There are two exposed screws on the inside decorative plate
Style Mortise Lock
Function Entrance or Office Function:
- Key outside retracts latchbolt, also locks & unlocks outside lever.
- Lever inside retracts latchbolt only, outside lever remains locked
- Lever outside is locked/unlocked by thumbturn inside or by key outside.
Design - Escutcheon - LW1 style - 8" x 2"
- Lever - select above
Handing Handed-field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Decorative Plate 8" high X 2" wide
Body 4-3/32" deep X 5-31/32" high
