Sargent Special Order Ligature Resistant Asylum or Institutional Mortise Lock with Push-Pull Trim Behavioral Healthcare-Ligature Resistant Security

Sargent 8217-ALP-32D-LAKD

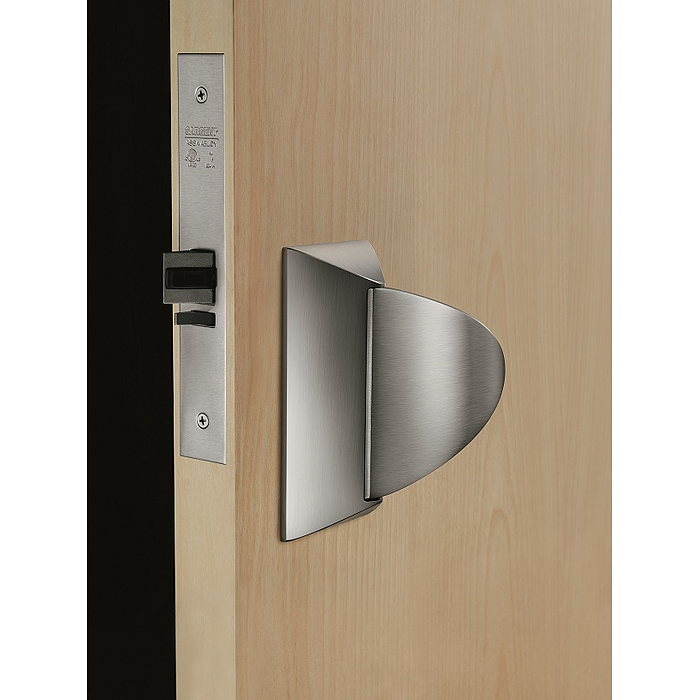

Special Order Ligature Resistant Asylum or Institutional Mortise Lock with Push-Pull Trim

Price: $1,098.00 /each

Special Order non-stock item Requires 6 week lead time

SKU: 8217-ALP-32D-LAKD

Choose Options Below

This is a non stock item that ships direct from Sargent. The 8217ALP Ligature Resistant Asylum or Institutional function mortise lock with push/pull trim provides an alternative to standard push/pull products. Heavy duty push/pull hardware that is flexible, easy to use and aesthetically pleasing allows its use in many types of environments. Appropriate for behavioral healthcare settings and beautiful enough for healing environments, this trim offers multiple mounting options and easy operation. Hands free operation .

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

Special Order
FREE Shipping

Have a question about this product?

Price: $1,098.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose MicroShield(R):

SG MicroShield-antimicrobial coating +$60.00

No MicroShield coating

Help Me Decide

MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.
Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.
MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.
As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.
Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.

Choose Handing:

Need Help Deciding?

Left Hand Reverse (LHR)

Right Hand Reverse (RHR)

Left Hand (LH)

Right Hand (RH)

Help Me Decide

Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.
The outside of a room door is the hall side.
The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

If the door swings away from you it is Left Handed
If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

If the door swings away from you, it is Right Handed
If the door swings towards you, it is Right Hand Reversed

Choose Finish:

Satin Stainless Steel (US32D)

1 Choose MicroShield(R):
2 Choose Handing:
3 Choose Finish:
Qty.
Have a question? Need help?
Call Us: 1-866-749-7661

Overview

Special order non stock item with 4 week lead time.

Asylum or Institutional function, Key from either side retracts latchbolt.
Paddle on both sides are locked at all times.
Paddle can be mounted in horizontal (up or down) and vertical (sideways) orientations in the field.
Paddle trim is non-handed; lockbody is easily field reversible.
Door thickness 1-3/4" to 1-7/8".
Backset 2-3/4".
Outside front plate-8"x 1-1/4".

Available Options: Choose Options Above

MicroShield(R):
MicroShield(R)
MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.

Applications: Anywhere there is need for a clean environment , hospitals, laboratories, schools, medical centers, daycare, food processing.

MicroShield® coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. It is effective against a broad spectrum of bacteria.

As an integral part of the finish coating, MicroShield® lasts for the life of the hardware.

Non-toxic and completely safe. The Agion antimicrobial compound is EPA and NSF approved and FDA listed for use in medical and food preparation equipment.
- SG MicroShield-antimicrobial coating
- No MicroShield coating
Handing:
Handing
Face the outside of the door to determine the hand. Here are some rules to follow:

The outside of an exterior door is the street or entrance side.

The outside of a room door is the hall side.

The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

The outside of a closet door is the room or hall side.

When you are standing outside of the room facing the door and the hinges are on your left side:

If the door swings away from you it is Left Handed

If the door swings towards you it is Left Hand Reversed

When you are standing outside of the room facing the door and the hinges are on your right side:

If the door swings away from you, it is Right Handed

If the door swings towards you, it is Right Hand Reversed
- Left Hand Reverse (LHR)
- Right Hand Reverse (RHR)
- Left Hand (LH)
- Right Hand (RH)
Finish:
- Satin Stainless Steel (US32D)

Product at A Glance

Optional MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria

More Info

Covers are cast stainless steel or brass.
Latchbolt, stainless steel 3/4" projection one-piece, anti-friction reversible latch.
4-7/8" ANSI Strike with 1-1/4" curved lip.
Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
ADA,Meets A117.1 Accessibility Code.
Complies with American Disability Act.
Meets BOMA International 4.13.8
UL and cUL Listed for use with 3 hour fire “A” label 4 x 10 single and 8 x 10 double and lesser class doors.
Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies.
Available in many other finishes.Contact us for pricing.
