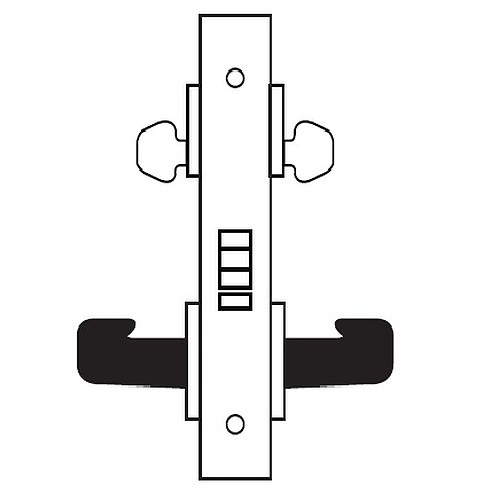

Sargent 8217

Asylum or Institutional Mortise Lock Body

Price: $474.00 /each
Special Order non-stock item Requires 6 week lead time

SKU: 8217

Choose Options Below

The Sargent 8217 asylum function mortise lock body, double cylinder lock. Key required from both side of the door to retract the latch. Levers on both sides of door are locked at all times. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools, Universities, Office Buildings and Government Facilities.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $474.00

Choose Finish:

Satin Chrome (US26D) Satin Chrome (US26D)

Overview

  • Lockbodies include outside front, strike, and mounting screws.
  • Mortise lock bodies do not include the cylinder or inside and outside lever and rose.
  • Backset- 2-3⁄4" only
  • For doors 1-3⁄4" thick standard
  • Handing - field reversible-shipped RH standard
  • Requires 2 1-1/8" Mortise cylinders, not included
  • Body is 4-3/32" deep x 5-31/32" high.

Available Options: Choose Options Above

More Info

  • ANSI F30, 17 Asylum or Institutional - 8217
  • Key from either side retracts latchbolt
  • Lever on both sides locked at all times
  • Auxiliary deadlatch
  • Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.
  • UL Listed safety standards for A label (3 hour fire door).
  • 4-1/2" minimum stile, 4-3/4" minimum stile for electrical function locks
  • For Doors 1-3⁄4" thick standard
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" in 2"
  • Latchbolt - Stainless steel 3⁄4" projection one-piece, anti-friction reversible
