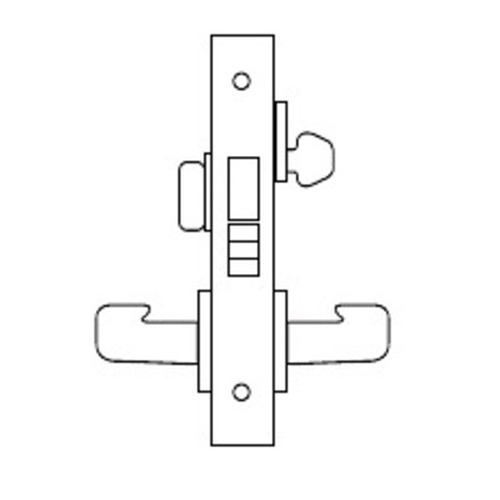

Sargent 8225-LNJ

Dormitory or Exit Function Complete Mortise Lock with J Style Lever and Rose

Quick Product Details

  • Complete Mortise Lock
  • Dormitory/Exit Function
Price: $563.00 /each

SKU: 8225-LNJ

Choose Options Below

This Sargent 8225LNJ is an 8200 series complete mortise lock that is equipped with J style lever and an LN style rose that has a diameter of two inches. Designed to suit your needs for a dormitory or exit function lock with many options to choose from below. Requires only thirty degrees or lever rotation in order to retract the latch.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $563.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US3 (Polished Brass) + $72.00 US3 (Polished Brass) +$72.00
US10B (Oil Rubbed Bronze) + $72.00 US10B (Oil Rubbed Bronze) +$72.00
US26 (Polished Chrome) + $72.00 US26 (Polished Chrome) +$72.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Cylinder:

Need Help Deciding?
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) Subtract -($49.80)
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

Left hand (LH)
Right hand (RH)

Help Me Decide

The handing of a door is always determined from the push side.







  • If the door swings away from you to the left, it is a Left Hand door
  • If the door swings away from you to the right, it is a Right Hand door



Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • Left hand (LH)
    • Right hand (RH)

Product at A Glance

  • There are two exposed screws inside the decorative plate
Style Mortise lock
Function Dormitory/ Exit Function:
- Key outside or thumbturn inside retracts or projects the latchbolt
- Either lever retracts the latch bolt when the deadbolt is retracted
- The outside lever is locked when the deadbolt is projected
- When the deadbolt is projected, the inside lever will retract the latchbolt and deadbolt simultaneously and unlock outside lever.
- ANSI F13
Design - Rose - LN style with 2" diameter
- Lever - select above
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- stainless steel
- one piece
- anti-friction
- reversible
Deadbolt - Stainless steel
- 1" projection
Door Thickness 1-3/4"
Stile 4-1/2" (minimum)
Backset 2-3/4" (Standard)
Outside Front plate 8" X 1-1/4"
Body 4-3/32" deep X 5-31/32" high
