Sargent 8225-US26D

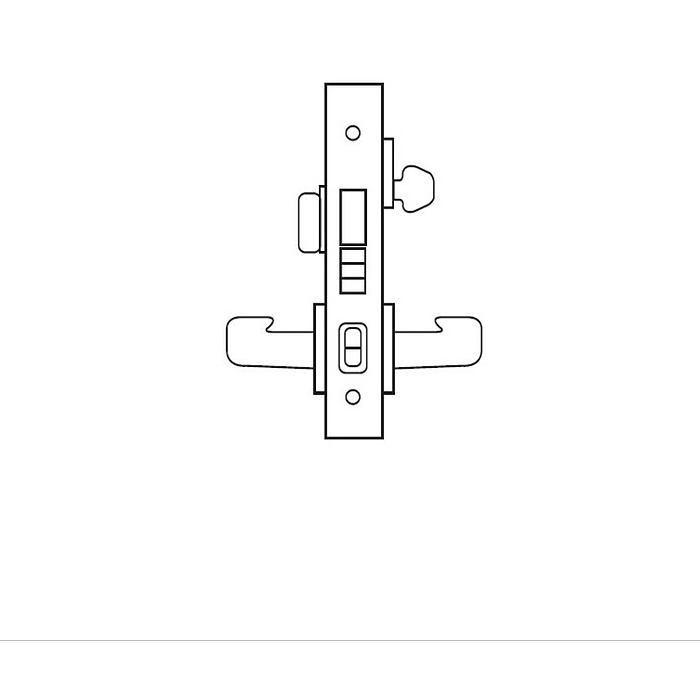

8225 Dormitory Mortise Lock Body

Price: $323.00 /each

SKU: 8225-US26D

Choose Options Below

The Sargent 8225 Dormitory or Exit function mortise lock body, Key outside retracts both latch and deadbolt, lever outside remains locked when deadbolt is extended. Lever outside is locked by projecting deadbolt. When deadbolt is retracted, outside and inside lever are unlocked. Mortise locks provide maximum security, performance and durability. Ideally suited for Hospitals, Schools / Universities, Office Buildings and Government Facilities.

  • Stock Item
  • Order in the next 34 hours 59 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $323.00

Choose Finish:

Satin Chrome (US26D) Satin Chrome (US26D)

Overview

  • Lockbodies include outside front, strike, and mounting screws.
  • Backset- 2-3⁄4" only
  • For doors 1-3⁄4" thick standard
  • Trim not included
  • Handing - field reversible-shipped RH standard

Available Options: Choose Options Above

More Info

  • ANSI F13, 25 Dormitory or Exit - 8225
  • Key outside or thumb turn inside retracts and projects deadbolt
  • Key outside retracts both latchbolt and deadbolt,
    lever/knob outside becomes unlocked when deadbolt is retracted
  • Lever/Knob inside (when deadbolt is projected) retracts latchbolt
    and deadbolt simultaneously, and lever/knob will be unlocked
  • 4-1/2" minimum stile, 4-3/4" minimum stile for electrical function locks
  • Strike-ANSI Standard A115.1; 4-7⁄8", 1-1/4" curved lip, non-handed
  • Outside front plate-8" x 1-1⁄4", ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" in 2"
  • Deadbolt - one-piece hardened stainless steel, with 1" projection
  • Latchbolt - stainless steel 3⁄4" projection one-piece, anti-friction reversible
  • Requires a 1-1/8" Mortise cylinder, not included
  • Requires 2 levers or 2 knobs, not included
