Sargent 8225LW1

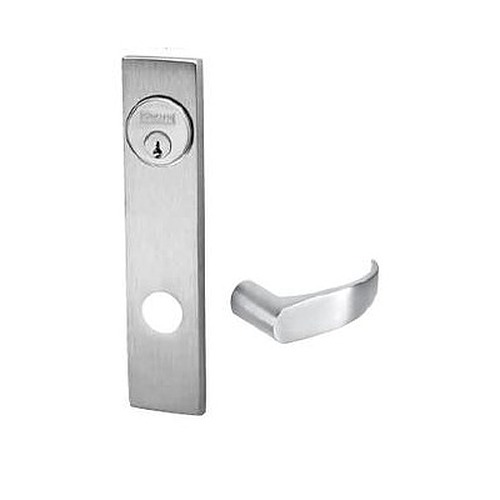

Dormitory or Exit Function Complete Mortise Lock with Lever and Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Dormitory/Exit Function
SKU: 8225LW1

Price: $552.00 /each

Choose Options Below

This Sargent 8225LW1 complete mortise lock with lever and decorative plate functions as a dormitory or exit lock. It can be ordered with a variety of different options such as product finish, different lever designs, choice of three different cylinders and the handing that will accommodate your door. Constructed for doors that are 1-3/4" thick.

  • In Stock!
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $552.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Need Help Deciding?

Help Me Decide

  • Lever with LW1 decorative plate.
  • Plate is 8" H x 2" W

Choose Finish:

Choose Cylinder:

Need Help Deciding?

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

Need Help Deciding?

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LW1 Decorative Plate
    • L lever with LW1 Decorative Plate
    • P lever with LW1 Decorative Plate
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • There are two exposed screws inside the decorative plate
Style Mortise lock
Function Dormitory/ Exit Function:
- Key outside or thumbturn inside retracts or projects the latchbolt
- Either lever retracts the latch bolt when the deadbolt is retracted
- The outside lever is locked when the deadbolt is projected
- When the deadbolt is projected, the inside lever will retract the latchbolt and deadbolt simultaneously and unlock outside lever
- ANSI F13
Design - Escutcheon - LW1 style
- Lever - select above
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Deadbolt - Stainless steel
- 1" projection
Door Thickness 1-3/4"
Stile 4-1/2" (minimum)
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Decorative Plate 8" high X 2" wide
Body 4-3/32" deep X 5-31/32" high

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Dormitory or Exit Function Complete Mortise Lock with Lever and Decorative Plate

SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation
