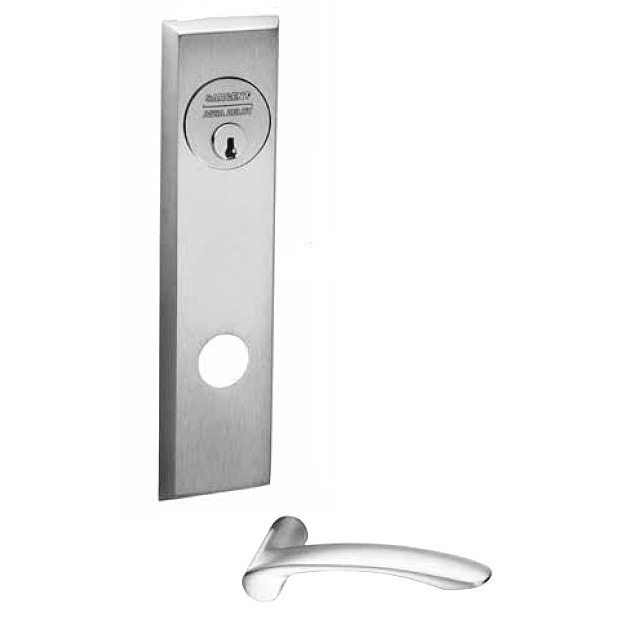

Sargent 8243-CEMV-626-2.25 THK DR-LA KD

Special Order Apartment Corridor Door Complete Mortise Lock with Lever Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Apartment/Corridor Function
SKU: 8243-CEMV-626-2.25 THK DR-LA KD

Price: $758.00 /each

Special Order non-stock item Requires 4 week lead time

Choose Options Below

The Sargent 8243CEMV is top of the line in strength and durability. Its quality construction is made to provide your doors with the ultimate level of security, and to ensure that your lock serves its purpose of protecting your home business etc., to the fullest extent possible, following the highest security standards. The 8243CEMV includes a lever and a decorative plate, and is with the apartment/corridor function.

  • Special Order
  • FREE Shipping

Have a question about this product?

Price: $758.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Handing:

Left Hand (LH)
Right Hand (RH)

Help Me Decide

The hand of a door is always determined from the outside.



If the door swings away from you to the left, it is a Left Hand door

If the door swings away from you to the right, it is a Right Hand door

Overview

Special order non stock item with 4 week lead time

  • Commercial heavy duty applications.
  • For 2-1/4" thick door..
  • with CE style Escutcheon and MV style lever.
  • Satin chrome finish-US26D



Available Options: Choose Options Above

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • There are two exposed screws inside the decorative plate
Style Mortise lock
Function Apartment/Corridor Function:
- Key in the outside lever retracts the deadbolt and the latch bolt
- Thumbturn inside retracts the deadbolt
- Lever on either side retracts the latch bolt, unless the outside lever is locked
- Inside lever retracts the latchbolt and deadbolt (when projected) simultaneously
- Outside lever can be unlocked by toggle only
- ANSI F20
Design - Escutcheon - CE style
- Lever MV
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 2-1/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Armored Front Plate 8" X 1-1/4"
Escutcheon Plate 7-7/8" high X 2" wide
Body 4-3/32" deep X 5-31/32" high
Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch
