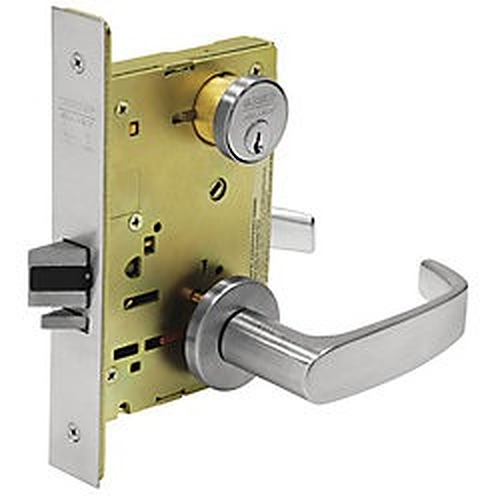

Sargent 8243LN

Apartment Corridor Door Function Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Complete Mortise Lock
  • Apartment/Corridor Function
SKU: 8243LN

Price: $564.00 /each

Choose Options Below

This Sargent 8243LN complete mortise lock includes a lever (select style below) and an LN style rose. This lock is conveniently constructed to allow for simple re-handing without disassembling the components or removing the case. Lock also operates with only thirty degree rotation necessary to retract the latch. 8243LN operates with apartment/corridor function.

  • In Stock!
  • Order in the next 17 hours 36 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $564.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Need Help Deciding?
B lever with LN Rose B lever with LN Rose
L lever with LN Rose L lever with LN Rose
P Lever with LN Rose P Lever with LN Rose

Help Me Decide

  • Lever with LN style rose. Rose has a 2" diameter

Choose Finish:

US3 (Polished Brass) + $14.00 US3 (Polished Brass) +$14.00
US10B (Oil Rubbed Bronze) + $14.00 US10B (Oil Rubbed Bronze) +$14.00
US26 (Polished Chrome) + $14.00 US26 (Polished Chrome) +$14.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Cylinder:

Need Help Deciding?
Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) Subtract -($39.60)
60-Prepped for Removable Core, core not included
70- Prepped for Small Format Interchangeable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

Need Help Deciding?
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse

Help Me Decide

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LN Rose
    • L lever with LN Rose
    • P Lever with LN Rose
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • LH Left Hand
    • RH Right Hand
    • LHR Left Hand Reverse
    • RHR Right Hand Reverse

Product at A Glance

Style Mortise lock
Function Apartment/Corridor Function:
- Key in the outside lever retracts the deadbolt and the latch bolt
- Thumbturn inside retracts the deadbolt
- Lever on either side retracts the latch bolt, unless the outside lever is locked
- Inside lever retracts the latchbolt and deadbolt (when projected) simultaneously
- Outside lever can be unlocked by toggle only
- ANSI F20
Design - Rose - LN style with 2" diameter
- Lever - select above
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- stainless steel
- one piece
- anti-friction
- reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Body 4-3/32" deep X 5-31/32" high
