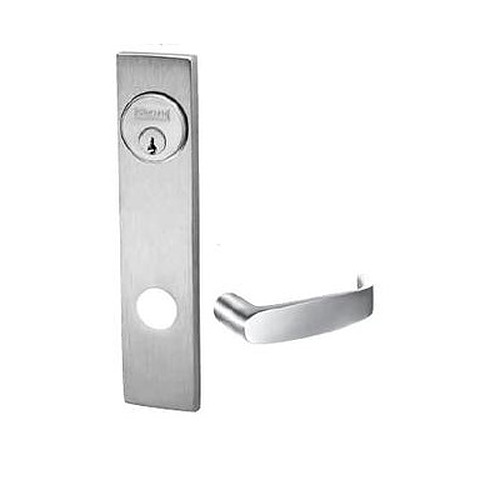

Sargent 8243LW1

Apartment Corridor Door Complete Mortise Lock with Lever Decorative Plate

Quick Product Details

  • Complete Mortise Lock
  • Apartment/Corridor Function
SKU: 8243LW1

Price: $552.00 /each

Choose Options Below

The Sargent 8243LW1 is top of the line in strength and durability. Its quality construction is made to provide your doors with the ultimate level of security, and to ensure that your lock serves its purpose of protecting your home business etc., to the fullest extent possible, following the highest security standards. The 8243LW1 includes a lever and a decorative plate, and is programmed with the apartment/corridor function.

  • In Stock!
  • Order in the next 2 hours 22 minutes to Ship TODAY
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $552.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

Need Help Deciding?

Help Me Decide

  • Lever with LW1 decorative plate.
  • Plate is 8" H x 2" W

Choose Finish:

Choose Cylinder:

Need Help Deciding?

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-repped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included

70-Prepped for Small Format Interchangeable Core(core not included)





Choose Handing:

Need Help Deciding?

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.


When you are standing outside of the room facing the door and the hinges are on your left side:

  • If the door swings away from you it is Left Handed
  • If the door swings towards you it is Left Hand Reversed


When you are standing outside of the room facing the door and the hinges are on your right side:

  • If the door swings away from you, it is Right Handed
  • If the door swings towards you, it is Right Hand Reversed

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Meets ADA requirements for barrier free accessibility
  • 10 year limited warranty
  • Auxiliary Deadlatch

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LW1 Decorative Plate
    • L lever with LW1 Decorative Plate
    • P lever with LW1 Decorative Plate
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included
    • 70- Prepped for Small Format Interchangeable Core, core not included
  • Handing: info icon

    • Left Hand Reverse (LHR)
    • Right Hand Reverse (RHR)
    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • There are two exposed screws inside the decorative plate
Style Mortise lock
Function Apartment/Corridor Function:
- Key in the outside lever retracts the deadbolt and the latch bolt
- Thumbturn inside retracts the deadbolt
- Lever on either side retracts the latch bolt, unless the outside lever is locked
- Inside lever retracts the latchbolt and deadbolt (when projected) simultaneously
- Outside lever can be unlocked by toggle only
- ANSI F20
Design - Escutcheon - LW1 style
- Lever - select above
Handing Handed - field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front Plate 8" X 1-1/4"
Decorative Plate 8" high X 2" wide
Body 4-3/32" deep X 5-31/32" high

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Apartment Corridor Door Complete Mortise Lock with Lever Decorative Plate

SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation
